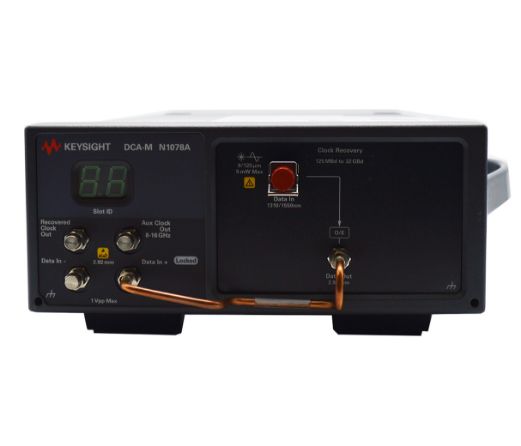

Keysight Technologies N1078A-232

Optical/Electrical Clock Recovery. 50 MBd to 32 GBd

Achieve industry-standard clock recovery with adjustable loop bandwidth and peaking on electrical/optical signals up to 64GBd with the Keysight (formerly Agilent) N1078A-232 DCA-M.

Effectively test next-generation receivers and transmitters, such as 100/400G Ethernet and 64GFC. The Keysight N1078A-232 DCA-M accurately recovers clock signals from high-speed optical communication signals. It supports single-mode operation with NRZ and PAM4 signal types.

This DCA-M for sampling scopes also performs accurate PLL and jitter measurements and analyzes the root cause of jitter.

Keysight N1078A-232 Features and Specifications:

Electrical Data Input/Output:

  • Data rate input range: 125MBd to 32GBd, 125MBd to 32.8GBd (characteristic)
  • Minimum input level to acquire lock (NRZ and PAM4, single-ended, open eye):
    - 30 mVpp
    - 10 mVpp at 10.3125GBd (characteristic)
    - 10 mVpp at 26.56GBd (characteristic)
  • Minimum input level to acquire lock (PAM4, closed eye): 50 mVpp at 26.56GBd with 20dB channel loss at 13.28GHz (characteristic)
  • Input voltage levels (min/max): plus/- 500 mV

Optical Data Input/Output:

  • Data rate input range: 125MBd to 32GBd, 125MBd to 32.8GBd (characteristic)
  • Wavelength range: 1260nm to 1620nm; tested at 1,310nm and 1,550nm
  • Insertion loss (option S50): 4.75dB, 3.5dB (characteristic)
  • Return loss: 16dB (characteristic)
  • Optical to electrical conversion gain:
    -120V/W @ 26.56GBd (option S50) (characteristic)
    -240V/W @ 26.56GBd (option SXT) (characteristic)

The Keysight (formerly Agilent) N1078A-232 DCA-M optical/electrical clock recovery solution is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or get a quote call 800-874-7123.

Read More
  • Configurations
  • Resources
--, 232, EVA, JSA, SXT
See Configuration Details
  • 232

    Supported Input rates: 125 MBd to 32 GBd

  • EVA

    Equalizer, integrated, variable

  • JSA

    Jitter Spectrum Analysis and Clock Recovery Emulation

  • SXT

    External Splitter (supplied by user)
