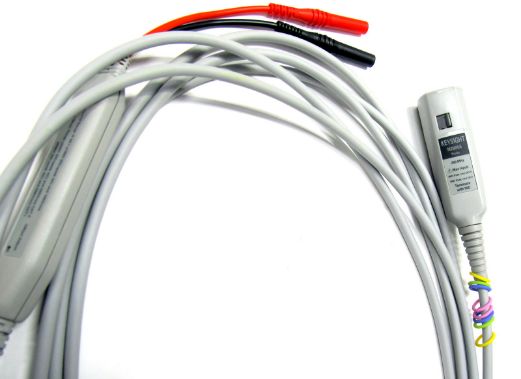

Keysight Technologies N2805A
200 MHz 500V 5m Differential probe -
Perform superior differential signal measurements that are required for high-speed power measurements with the Keysight (formerly Agilent) N2805A high-voltage differential probe.
The Keysight N2805A can efficiently measure characteristics of switching power devices, DC-DC converters or class D amplifiers, vehicle bus measurements, and high-speed digital system designs. The probe's exceptional CMRR helps in the measurement of small differential signals present in much larger common-mode signals in power measurements.
Keysight N2805A Features and Specifications:
- Bandwidth (-3dB): 200MHz
- Rise time (calculated, 0.35/Tr, 10 to 90 percent): 1.75ns
- Attenuation: 50:1
- DC gain accuracy (percent of reading): plus/-1 percent
- Input R//C (each side to ground): 2 M ohmes//8 pF
- Input R//C (between inputs): 4 M omhes//4 pF
- Probe noise (referred to probe input): 30mVrms
- Output offset (typical): < plus/- 2mV (adjustable)
- Max differential operating voltage: plus/- 100V (DC peak AC) and plus/- 100Vrms
- Adjustable offset range: -80mV to &80mV or larger
The Keysight (formerly Agilent) N2805A high-voltage differential probe is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or get a quote call 800-874-7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adjustment Tool
Qty: 1 -
Ring Set Color Coded
Qty: 1 -
Alligator Clip Set
Qty: 1 -
Case Hard Plastic
Qty: 1 -
Hook Tip Set
Qty: 1 -
Pin Probe Set (1 Black/1 Red)
Qty: 1 -
Pincher Set (1 Black - 1 Red)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N2805A Spec Sheet
