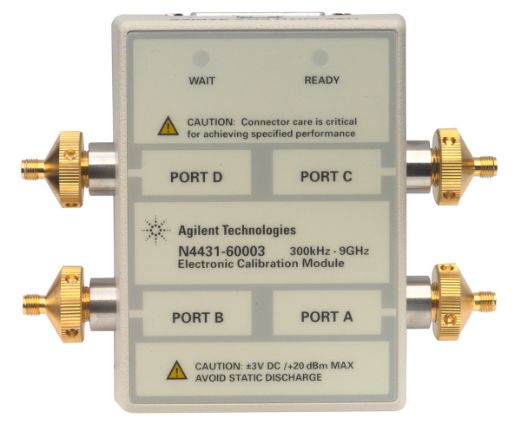

Keysight Technologies N4431A

4-port, RF Ecal Module

The Keysight (formerly Agilent) N4431A RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. Electronic calibration (ECal) is a single-connection, one to four-port calibration device for your vector network analyzers.

Performing a full three - or four-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The Keysight (formerly Agilent) PNA and ENA series of network analyzers controls the N4431A module directly through a USB interface. PNA Series network analyzers require firmware revision 2.5.

Keysight N4431A - Features and Specifications:

  • Fast full 3-port or 4-port calibration with a single connection
  • Frequency - 13.5 GHz
  • Connector type available: 3.5 mm or Type-N 50 omega or 7-16 (mixed connector)
  • USB interface for direct control with PNA and ENA series of network analyzers

Rent or lease the Keysight (formerly Agilent) N4431A RF electronic calibration (ECal) module at TRS-RenTelco with 24/7 support. Contact us to know more or request a quote.

Read More
  • Configurations
  • Resources
010
See Configuration Details
  • 010

    Four 3.5 Mm Female Module Conn

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Wrench Torque 8 in/lb 20 mm Open End

    Qty: 1
  • Wrench Torque 8 in/lb 5/16 in Open End

    Qty: 1
  • Ecal Module 4-Port N4431A

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • Box Wooden

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
