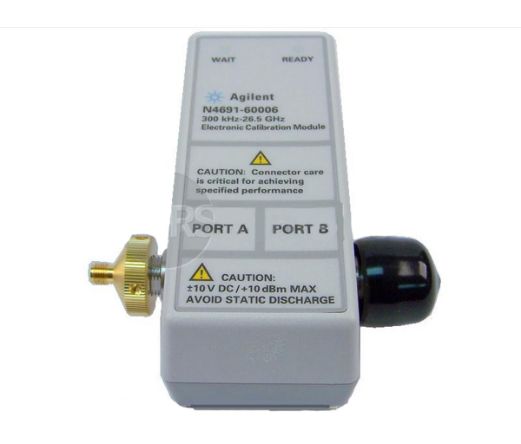

Keysight Technologies N4691B

2-port, 300 kHz to 26.5 GHz Ecal module, 3.5 mm

The Keysight (formerly Agilent) N4691B electronic calibration (ECal) module makes the calibration of vector network analyzers fast, easy and accurate. The N4691B ECal module is now easily controlled by one of two methods depending on the network analyzer. The Keysight (formerly Agilent) PNA and ENA series of network analyzers controls the module directly via the USB interface. The N4691B modules can also be controlled via an 85097B interface kit when used with a Keysight (formerly Agilent) 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Rev. 7.74).

Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With the N4691B electronic calibration module, the operator simply connects the N4691B module to the network analyzer and the software controls the rest.

Keysight N4691B ECal Module - Features and Specifications:

  • 300 kHz to 26.5 GHz frequency range
  • USB interface for direct control with PNA and ENA series of analyzers
  • Fast calibration (less than half the time compared to mechanical calibration kits)
  • Full two-port calibration with a single connection
  • Reduced connector wear
  • NIST traceable accurate calibrations
  • Reliable solid-state switching

The Keysight N4691B Electronic Calibration (ECal) module comes with 24/7 customer support and is available for rent or lease at TRS-RenTelco.

The latest test equipment – We understand your interests in having the latest and the best in test equipment and are one of the first to buy newly introduced equipment from top T&M manufacturers. If you need a new equipment model, we probably already have it in stock.

Calibrated equipment - Our experienced team of metrologists and technicians calibrate products like the N4691B ECal module to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.

Fast delivery option

Read More
  • Configurations
  • Resources
See Configuration Details
  • 00F

    Both 3.5mm connectors female

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Spanner Wrench

    Qty: 1
  • Adapter 3. 5mm(f) - 3.5 mm(f)

    Qty: 1
  • Adapter 3.5 mm(m) - 3.5 mm(m)

    Qty: 1
  • Wrench Torque 8 in/lb 20 mm Open End

    Qty: 1
  • Wrench Torque 8 in/lb 5/16 in Open End

    Qty: 1
  • Wrench 1/2 and 9/16 in

    Qty: 1
  • Module Electronic Calibration

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • Box Wooden

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
