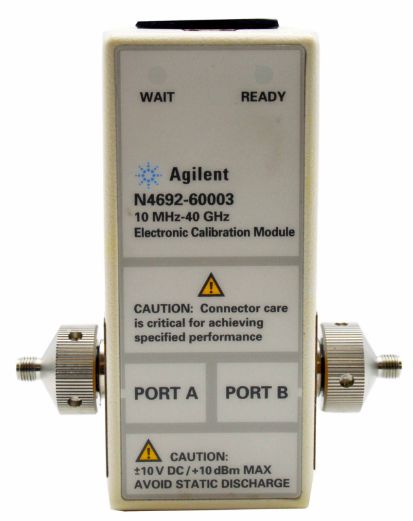

Keysight Technologies N4692A-00F
2-port, 10 MHz - 40 GHz Ecal Module, 2.92 mm (f-f)
The Keysight (formerly Agilent) N4692A MW electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy and accurate.
The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Keysight (formerly Agilent) PNA and ENA series of network analyzers controls the module directly via the USB interface. The modules can also be controlled via an 85097B interface kit when used with an Keysight (formerly Agilent) 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Rev. 7.74).
ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
Key Features of the Keysight N4692A-00F:
- USB interface for direct control with PNA and ENA series of network analyzers
- Alternative 85097B interface when used with other analyzers
- Fast calibration
- Full two-port calibration with a single connection
- Reduced connector wear
- NIST traceable accurate calibrations
- Reliable solid-state switching
- Straight-forward non-insertable device calibration
- User characterization available
TRS-RenTelco offers the Keysight (formerly Agilent) N4692A-00F Electronic Calibration Module for rent or lease, with 24/7 customer support. In addition, our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to request a quote toda
- Configurations
- Resources
--, 00F
See Configuration Details
-
00F
Both 2.92 mm connectors are female on module
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Spanner Wrench
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Wrench Torque 8 in/lb 5/16 in Open End
Qty: 1 -
Wrench 1/2 and 9/16 in
Qty: 1 -
Case Wooden
Qty: 1 -
n/a
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 00F, 150
See Configuration Details
-
00F
Both 2.92 mm connectors are female on module
-
150
Wooden storage box
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Spanner Wrench
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Wrench Torque 8 in/lb 5/16 in Open End
Qty: 1 -
Wrench 1/2 and 9/16 in
Qty: 1 -
Case Wooden
Qty: 1 -
n/a
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N4692A Spec Sheet
