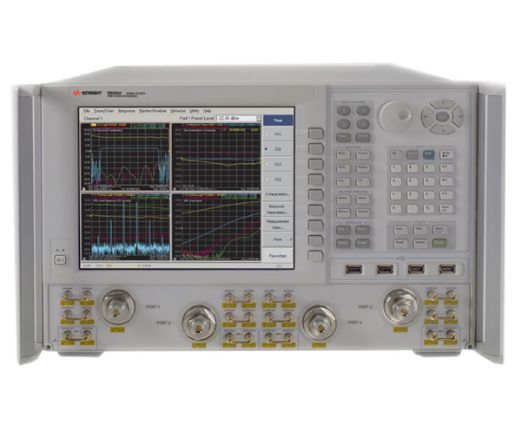

Keysight Technologies N5244A-400
4-port, 10 MHz - 43.5 GHz PNA-X Network Analyzer, 2.4 mm (m)
The Keysight (formerly Agilent) PNA-X network analyzer is a highly integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.
Here are the Key Specifications of the Keysight (formerly Agilent) N5244A-400:
- Maximum Frequency: 43.5 GHz
- Dynamic Range: 124 dB
- Output Power: 13 dBm
- Trace Noise: 0.002 dBrms
- Number of Built-In Ports: 2 or 4 ports
- Harmonics: -60 dBc
- Noise Floor: -111 dBm
- Best Speed at 201 Point, 1 Sweep: 5.5 ms
- Network Analyzer Series: PNA-X Most Advanced and Flexible
You can rent or lease the Keysight (formerly Agilent) N5244A-400 from TRS-RenTelco with 365 days customer service. Request a quote today.
- Configurations
- Resources
--, 010, 080, 083, 084, 400, 419, 423
See Configuration Details
-
083
Vector And Scalar Calibrated Converter Measurements
-
010
Time-domain Measurements
-
080
Frequency Offset Measurements
-
084
Embedded Lo Measurements
-
400
4 Ports, Dual Source
-
419
Add Extended Power Range And Bias-tees To 4 Port Analyzer
-
423
Add Internal Combiner And Mechanical Switches To 4-port Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Termination 50 Ohm SMA
Qty: 2 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Cover Front
Qty: 1 -
Cover Rear
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 021, 022, 025, 029, 080, 083, 086, 087, 088, 090, 400, 419, 423
See Configuration Details
-
021
Add Pulse Modulator To Internal First Source
-
008
Pulsed-rf Measurements
-
022
Add Pulse Modulator To Internal Second Source
-
025
Internal Pulse Generators, Add 4
-
086
Gain Compression Measurements
-
029
Fully-corrected Noise-figure Measurements To 50 Ghz
-
080
Frequency Offset Measurements
-
083
Vector And Scalar Calibrated Converter Measurements
-
087
Intermodulation Distortion Measurements
-
088
Source Phase Control
-
090
Spectrum Analyzer
-
400
4 Ports, Dual Source
-
419
Add Extended Power Range And Bias-tees To 4 Port Analyzer
-
423
Add Internal Combiner And Mechanical Switches To 4-port Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
