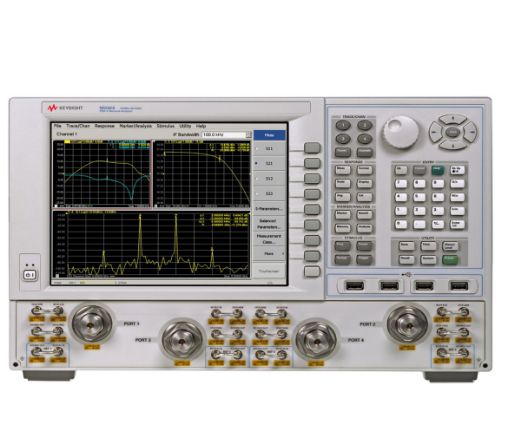

Keysight Technologies N5245AS-285
2-port, 10 MHz - 50 GHz PNA-X Network Analyzer Hi Pwr Config
Rent or Lease
The Keysight (formerly Agilent) N5245AS-285 is a network analyzer of the PNA-X variant offered by Keysight. This analyzer comes with option H85, which is specifically configured for making high-power measurements. The N524xAS Option H85/285 removes the bias-tees between the source attenuators and the test port couplers. This extends the maximum port power that the analyzer can safely handle to 43 dBm. Selecting OptionH85/285 adds internal attenuators and cables.
Specifications
- Maximum Frequency: 50 GHz
- Dynamic Range: 124 dB
- Output Power: 13 dBm
- Trace Noise: 0.002 dBrms
- Number of Built-In Ports : 2 ports
- Harmonics: -60 dBc
- Noise Floor: -111 dBm
- Best Speed at 201 Point, 1 Sweep: 5.5 ms
- Network Analyzer Series: PNA-X (Most Advanced and Flexible)
- Benchtop: Yes
Applications
- S-Parameters
- Noise Figure
- Gain Compression
- X-Parameters
- Balance Measurements
- Pulsed RF
- IMD
Components
- Antennas
- Mixers/Frequency Converters
- Amplifiers
Get the Keysight (formerly Agilent) N5245AS-285 PNA-X network analyzer from TRS-RenTelco for rent or for lease with the added benefit of our technical support. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.
- Configurations
- Resources
--, 080, 086, 200, 219, H85
See Configuration Details
-
010
Time-domain Measurements
-
080
Frequency-offset measurements
-
083
Vector And Scalar Calibrated Converter Measurements
-
086
Gain compression application
-
200
2 ports, single source
-
219
Add extended power range to 2 port analyzer (no bias-tees)
-
H85
High power configurable
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable Guard
Qty: 2 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Cover Front
Qty: 1 -
Cover Rear
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 6 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
