Keysight Technologies N5245B-422
4-port, 10 MHz - 50 GHz PNA-X Network Analyzer, 2.4 mm (m)
Rent or Lease

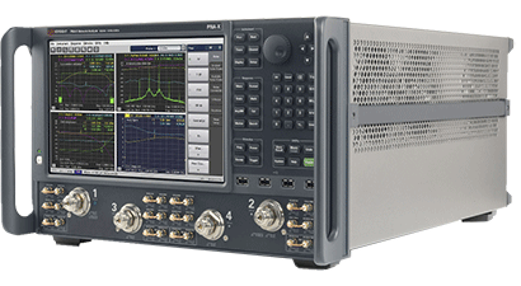

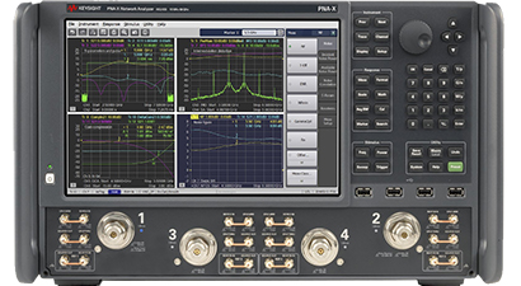

Keysight Technologies – N5245B-422
The Keysight Technologies N5245B-422 is a 4 port network analyzer which offers powerful and versatile solutions for microwave testing for requirements more than 10 GHz. The Keysight Technologies N5245B-422 is a power-packed solution for all your microwave testing needs.
N5245B-422 Product Highlights
- Frequency range: 900 Hz/10 MHz to 50 GHz
- Dynamic Range: 128 to 156 dB
- Output Power: 13 dBm
- 200 measurement channels and unlimited traces
- Number of Built-In Ports: 2 ports
- Linear, log, power, CW, phase, and segment sweeps
- State-of-the-art calibration capabilities
- Flexible triggers for measurement control
- Removable hard drive for secure environments
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Network/Impedance Analyzers solution for your job.
Renting Network/Impedance Analyzers
With TRS-RenTelco renting Network/Impedance Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
--, 029, 422, S93029B, S93029B-R-A5A-001-A
See Configuration Details
-
029
Add noise receiver to 50 GHz
-
422
4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches
-
S93029B
Noise Figure Measurements with Vector Correction
-
S93029B-R-A5A-001-A
Node-locked perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Termination U-Wave 50 GHz 2.4 mm(m)
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16 -
Cover Impact Rear Phantom Gray
Qty: 1 -
Cover Front Impact Gray
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Cable Guard Dual Rear Jumper Cable
Qty: 2 -
Handle Front Die Cast Gray
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 029, 422, S93027B, S93027B-KRS, S93027B-R-A5A-001-A, S93029B, S93029B-KRS, S93029B-R-A5A-001-A
See Configuration Details
-
029
Add noise receiver to 50 GHz
-
422
4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches
-
S93027B
Mechanical noise tuner control
-
S93027B-R-A5A-001-A
Node-locked perpetual license
-
S93029B
Noise Figure Measurements with Vector Correction
-
S93029B-R-A5A-001-A
Node-locked perpetual license
-
S93027B-KRS
Keysight Software Support While On Rent
-
S93029B-KRS
Keysight Software Support While On Rent
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Termination U-Wave 50 GHz 2.4 mm(m)
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16 -
Cover Impact Rear Phantom Gray
Qty: 1 -
Cover Front Impact Gray
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Cable Guard Dual Rear Jumper Cable
Qty: 2 -
Handle Front Die Cast Gray
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 029, 422, S93029B, S93029B-KRS, S93029B-R-A5A-001-A, SYNV7
See Configuration Details
-
029
Add noise receiver to 50 GHz
-
422
4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches
-
S93029B
Noise Figure Measurements with Vector Correction
-
S93029B-R-A5A-001-A
Node-locked perpetual license
-
SYNV7
Synthesizer and reference assembly, version 7 DDS, dual-source
-
S93029B-KRS
Keysight Software Support While On Rent
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Termination U-Wave 50 GHz 2.4 mm(m)
Qty: 1 -
Handle Front Die Cast Gray
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16 -
Cable Guard Dual Rear Jumper Cable
Qty: 2 -
Cover Front Impact Gray
Qty: 1 -
Cover Impact Rear Phantom Gray
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 029, 422
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Handle Front Die Cast Gray
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies PNA Configuration Guide
Keysight Technologies PNA Configuration Guide
Keysight Technologies N5245B Spec Sheet
Keysight Technologies PNA Configuration Guide
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight N5245B PNA-X with Option 422?
The Keysight N5245B with Option 422 is a 4-port PNA-X microwave network analyzer covering 900 Hz to 50 GHz. Option 422 includes a 4-port standard test set with six front-panel access loops, source and receiver attenuators for extended power range, an internal second source, a combiner, and mechanical switches. It features 50 ohm, ruggedized 2.4 mm male test port connectors.
What is the dynamic range of the N5245B with Option 422?
With Option 422, the N5245B achieves a typical system dynamic range of up to 140 dB at 1 to 2 GHz (Ports 1, 3) at 10 Hz IF bandwidth. In combine mode, the typical dynamic range reaches 124 dB at 3.2 to 10 GHz. The extended dynamic range at the direct receiver access input is typically up to 156 dB in the 3.2 to 10 GHz band.
How does the 4-port Option 422 differ from the 2-port Option 224?
Option 422 provides four test ports instead of two, enabling simultaneous multi-port device characterization without reconnecting the device under test. Both options include source and receiver attenuators, an internal second source, a combiner, and mechanical switches. However, Option 422 does not include bias tees, which are available in Option 423. The second source in Option 422 drives ports 3 and 4 and is also available from port 1 when combined with source 1.
What advanced measurements does the 4-port N5245B Option 422 enable?
The 4-port configuration enables differential and I/Q device measurements (S93089B), true-mode stimulus (S93460B), and active hot parameters (S93110B), all of which require a 4-port test set. Additionally, the internal combiner supports intermodulation distortion testing, and the dual sources allow mixer and frequency converter characterization. Nonlinear vector network analysis (S94510B/S94511B) also requires the 4-port test set option 42x.
Can the N5245B Option 422 perform noise figure measurements?
Yes, with the addition of Option 029, which adds a low-noise receiver and associated hardware for high-accuracy noise figure measurements. On the N5245B, Option 029 requires one of the 22x or 42x test set options, making Option 422 compatible. The S93029B application software is needed to control the noise receiver. An internal impedance tuner is included on the N5244B/45B with Option 029.
What is the maximum power rating of the N5245B Option 422 test port couplers?
The maximum power rating on the test port couplers is +43 dBm. However, additional attenuators or isolators are typically required to protect other internal components of the instrument. The source attenuators are settable in 10 dB steps up to 60 dB on the N5245B, and the receiver attenuators are settable in 5 dB steps up to 35 dB.
What software is needed to control the second source independently on the N5245B Option 422?
To independently control the frequency of the second internal source on Option 422, one of the following software applications is required: S93080B (frequency-offset measurements), S93029B (noise figure), S93070xB (modulation distortion), S93082B/S93083B (mixer/converter measurements), S93086B (gain compression), S93087B (intermodulation distortion), or S93090xB (spectrum analysis), among others.
What are the physical and interface characteristics of the N5245B PNA-X?
The N5245B PNA-X features a 12.1-inch LCD touch screen display, a solid-state drive, USB interfaces, and 2.4 mm male test port connectors. It includes a mouse and keyboard. Rack mount kits are available for installations with or without handles. The instrument supports IF inputs (Option 020) for antenna measurements and millimeter-wave extender configurations.
