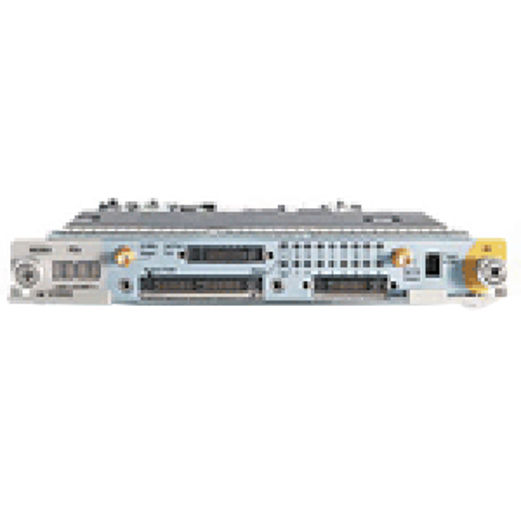

Keysight Technologies N5306A
E2960B PCI Exp 2.0 analyzer & exerciser 2.5 Gb/s or 5 Gb/s.
The N5306A is a key component of the E2960 family of PCIe test solutions. It is an I/O modules that fits into the N5540A or N5541A N2X chassis. The N5306A supports x1 through x8 PCIe links, and with two combined modules, can probe a x16 PCIe link. The N5306A can be used in conjunction with a wide range of probing options, including mid-bus, slot interposer and flying leads probes.
- 2.5 Gb/s and 5 Gb/s PCIe, traffic is reliably captured
- Advanced triggering capabilities reduce the time needed to detect difficult-to find errors
- Reliable data capture even exiting L0s, with the industry's fastest lock time of 5 - 7 fast training sequences (typical)
- It is fast and easy to understand the data through context-sensitive column analysis with easy flow views
- Configurations
- Resources
Base Model
