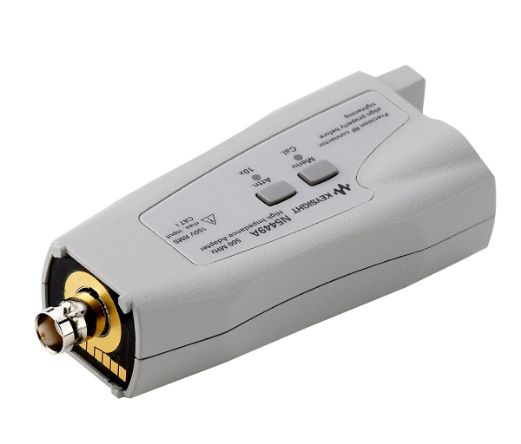

Keysight Technologies N5449A
High Impedance adapter for 90000-X series
The N5449A high impedance adapter allows connection of probes that require a high impedance input to the Infiniium V-Series, 90000 X-Series, 90000 Q-Series, and Z-Series oscilloscopes. The adapter allows you to use a high impedance passive probe, 1147B or N2893A AC/DC current probe or N2790A high voltage differential probe with the high-end Infiniium scopes. The adapter comes with a N2873A 500 MHz 10:1 passive probe.
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Sprung Hook
Qty: 1 -
Tip Rigid 0.5 mm
Qty: 2 -
Spring Tip 0.5 mm
Qty: 2 -
Insulating Cap
Qty: 1 -
IC Cap 0.5 mm Pitch Green
Qty: 1 -
IC Cap 0.65 mm Pitch Blue
Qty: 1 -
IC Cap 0.8 mm Pitch Gray
Qty: 1 -
IC Cap 1.0 mm Pitch Brown
Qty: 1 -
IC Cap 1.27 mm Pitch Black
Qty: 1 -
Ground Spring 2.5 mm
Qty: 1 -
Ground Blade
Qty: 1 -
Copper Pad
Qty: 2 -
Probe N2873A
Qty: 1 -
Cap Protection 2.5 mm
Qty: 1 -
Adapter BNC(m) - 2.5 mm Probe
Qty: 1 -
Ring Set Color Coded
Qty: 1 -
Lead Standard Ground
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
