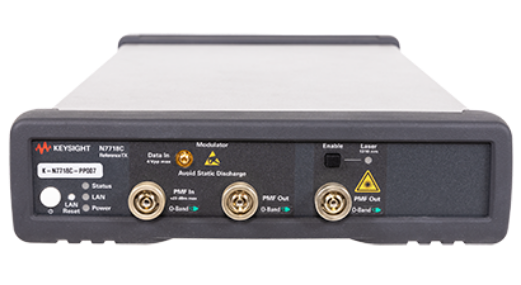

Keysight Technologies N7718C
Optical Reference Transmitter
Rent or Lease
The Keysight N7718C optical reference transmitter is suitable for any intensity-modulated signal format with rates of 120 Gbaud and beyond. It operates in the O-band (1.3 µm window). Users can connect the optical input to either the built-in 1310 nm DFB laser or a tunable laser to cover LR4, ER4, CWDM4, or other wavelength grids. The N7718C optical reference transmitter works with the Keysight M8199B arbitrary waveform generator (AWG) and the M8050 Series bit error ratio testers (BERT).
Key Features and Functions:
- Validate 200 Gbps-per-lane optical interfaces.
- Enable 400 Gbps-per-lane research.
- No RF Amplifier Required.
- Automated Bias Control.
Get the next gen Keysight N7718C optical reference transmitter for rent or lease at TRS-RenTelco.
- Configurations
--, 81000NI 1st, 81000NI 2nd, 81000NI 3rd, N7718C-313, N7799C-3PM
See Configuration Details
-
81000NI 1st
Connector interface, connector type FC narrow key way
-
81000NI 2nd
Connector interface, connector type FC narrow key way
-
81000NI 3rd
Connector interface, connector type FC narrow key way
-
N7799C-3PM
Patchcord PMF, FC/APC (narrow key) 35 cm long
-
N7718C-313
120 GBd, O-Band Operation, with external optical Input and integrated 1310 nm DFB Laser
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-B
Qty: 1 -
81000NI Connector interface,connector type FC
Qty: 3 -
Cable Assembly Power Cord 3-Conductor 125 V
Qty: 1 -
Cable Shielded CAT5e RJ45
Qty: 1 -
Patchcord,protected,black,1310nm
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 81000NI 1st, 81000NI 2nd, 81000NI 3rd, N7718C-100, N7718C-313, N7799C-3PM
See Configuration Details
-
81000NI 1st
Connector interface, connector type FC narrow key way
-
81000NI 2nd
Connector interface, connector type FC narrow key way
-
81000NI 3rd
Connector interface, connector type FC narrow key way
-
N7718C-100
With integrated 1310 nm DFB Laser
-
N7718C-313
120 GBd, O-Band Operation, with external optical Input and integrated 1310 nm DFB Laser
-
N7799C-3PM
Patchcord PMF, FC/APC (narrow key) 35 cm long
