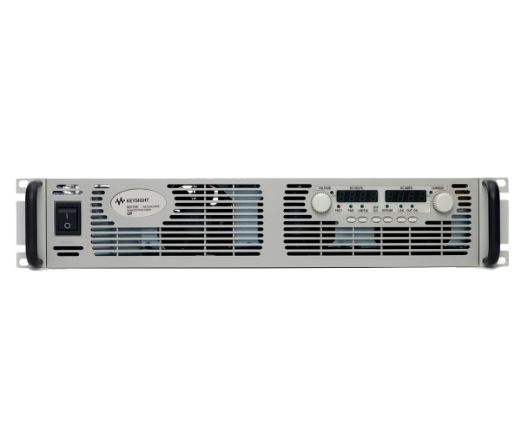

Keysight Technologies N8754A
5000W (20V/250A) DC Power Supply
The Keysight N8754A is a 20 V, 250 A, 5000 W single output power supply in a compact 2U package. With the N8754A, you get flexible AC input options, analog/resistance control of output voltage and current, and parallel and series connection of multiple supplies to achieve more output current or voltage respectively.
Keysight, formerly Agilent N8754A - Key Features and Specifications:
- DC Output Ratings
-Voltage: 20 V
-Current: 250 A
-Power: 5000 W - Programming Accuracy
-Voltage: 0.025% 15 mV
-Current: 0.1% 750 mA - Output Ripple and Noise
-CV p-p: 75 mV
-CV rms: 10 mV
You can rent or lease the Keysight N8754A at TRS-RenTelco.
The latest test equipment - We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.
Calibrated equipment - All our test equipment comes with 24/7 customer support, and we have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM. This lets us take orders as late as 8:00 PM daily and have the equipment delivered to you the following morning.
Contact us to learn more or request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Strain Relief Assembly
Qty: 1 -
Power Cable 4-Conductor 208 V 3-Phase 8 ft Un-Shielded
Qty: 1 -
Cover DC Output Safety
Qty: 1 -
Cover Safety AC Input
Qty: 1 -
Connector AC Input 3 Phase
Qty: 1 -
Cover V-Sense Connector
Qty: 1 -
Connector Output V-Sense
Qty: 1 -
Lock Nut
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.3.29517
Qty: 1
