Keysight Technologies N8923A

500 V, 30 A, 5000 W, 208 VAC DC Power Supply

Achieve exceptionally high power for all your automated test equipment (ATE) systems applications with the Keysight (formerly Agilent) N8923A high-power DC power supply.

The N8923A is a single-output autoranging power supply that delivers cost-effective, superior performance with unparalleled flexibility. This Keysight power supply's autoranging capability offers a wide range of voltage and current combinations at full power.

Multiple units of the Keysight N8923A can be connected in parallel to create one power supply with more than 100kW of power.

Keysight N8923A Features and Specifications:

  • Voltage: 500V
  • Current: 30A
  • Power: 5,000W
  • Output voltage ripple and noise:
    - CV p-p: 350mV
    - CV rms: 70mV
  • Load effect (change from 0 to 100 percent of full load):
    - Voltage: 250mV
    - Current: 45mA
  • Programming accuracy (23 degrees C 5 degrees C):
    - Voltage: < 500mV
    - Current: < 60mA
  • Measurement accuracy (23 degrees C 5 degrees C):
    - Voltage: < 500mV
    - Current: < 60mA
  • Load transient recovery time: < 1.5ms
  • Output response time:
    - Up, full load: < 30ms
    - Down, full load: < 80ms

The Keysight (formerly Agilent) N8923A high-power DC power supply is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Connector Plug for Sense Terminals

    Qty: 1
  • Connector Plug for Sense Terminals

    Qty: 1
  • Cover Safety for DC Output

    Qty: 1
  • Hardware DC Terminal Connection

    Qty: 2
  • Special AC Fixing Angle for N89xx Series

    Qty: 1
  • Cap Nut M3

    Qty: 4
  • Washer M3

    Qty: 4
  • Terminal Block 4-Wire Special AC Plug 208 V 3-Phase Green

    Qty: 1
  • USB Software I/O Libraries, v18.2.28229

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Customers Also Ordered

.
Product

DC Power Supplies & Loads

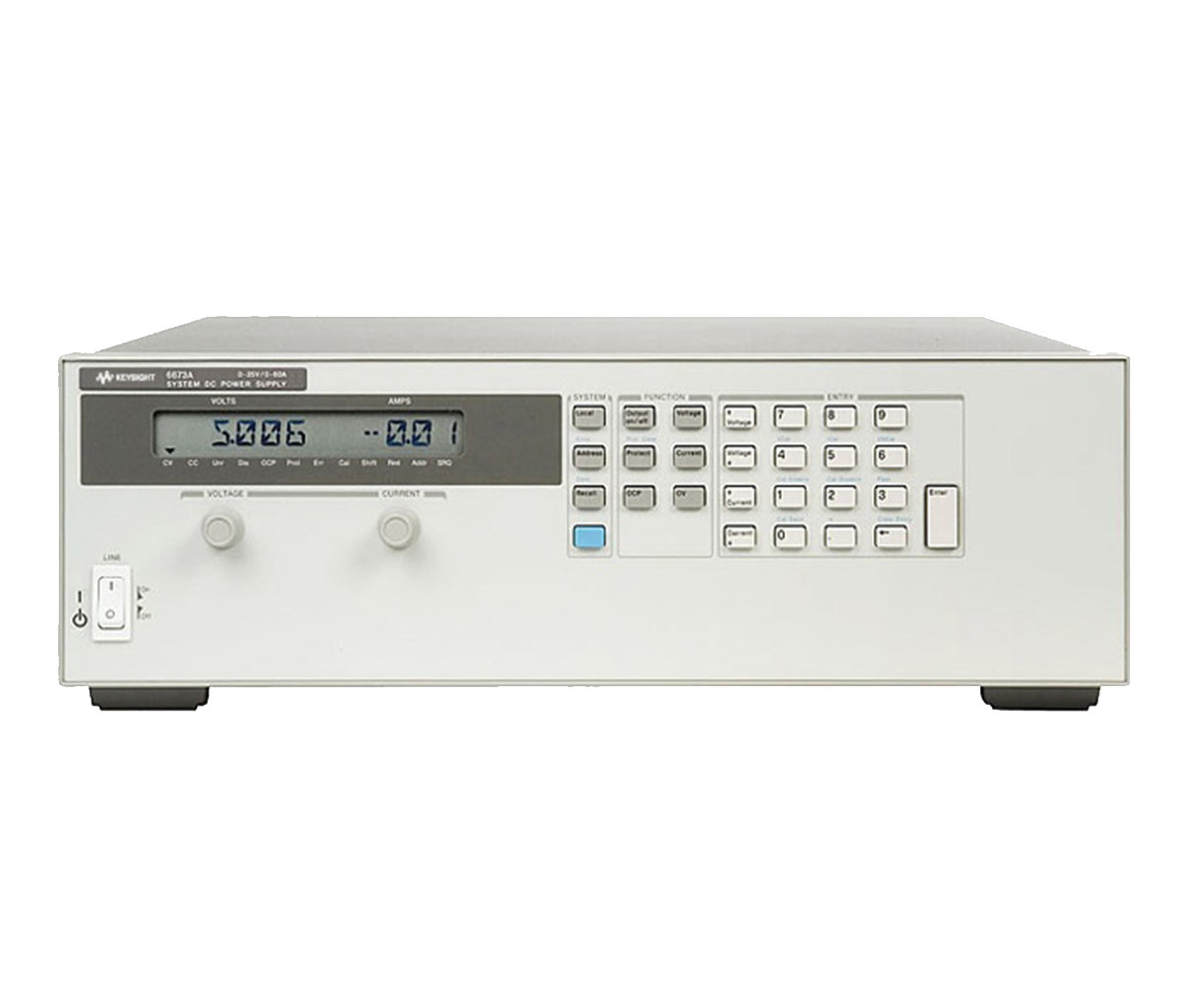

Keysight Technologies 6673A
