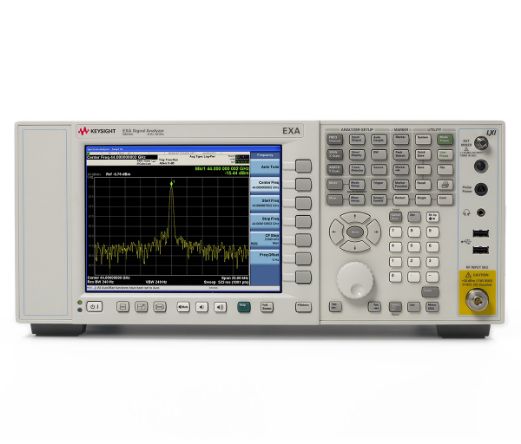

Keysight Technologies N9010A-503

3 GHz EXA Signal Analyzer, Type N (f)

The Keysight (formerly Agilent) EXA is the industry's fastest economy-class signal analyzer. The N9010A-503's speed and accuracy, coupled with its unprecedented performance and application coverage, provides development and manufacturing engineers with the capabilities to cost effectively troubleshoot new designs, increase manufacturing throughput, or analyze complex and time-varying signals. The N9010A-503 EXA seamlessly integrates a broad range of standards-based measurements with Keysight's (formerly Agilent) industry leading 89600 vector signal analysis (VSA) software all in a single instrument. In addition to the use of an open Windows XP Professional operating system, the Keysight N9010A-503 EXA provides an advanced signal analysis user interface.

All measurement features and functions are intuitively grouped and accessible from the front panel or via a USB keyboard and mouse. The N9010A-503 EXA signal analyzer comes with optional measurement application software which provides preconfigured test routines for 802.16e Mobile WiMAX, W-CDMA, HSDPA/HSUPA, GSM/EDGE and phase noise applications. Running the Keysight (formerly Agilent) 89600 VSA software application in the EXA enables advanced signal demodulation analysis and troubleshooting of more than 50 demodulation formats including: 2G, 3G, 3.5G, WiMAX, WLAN, and Private Mobile Radio. This unit is LXI class C certified.

  • Up to 300% faster than other economy spectrum and signal analyzers
  • 4 ms marker peak search
  • 75 ms measurement/mode switching speed
  • 11.4 ms remote sweep and transfer (GPIB)
  • 0.3 dB absolute amplitude accuracy
  • 13 dBm third order intercept (TOI)
  • -146 dBm/Hz displayed average noise level (DANL)

You can rent or buy the Keysight, formerly Agilent N9010A-503 from TRS-RenTelco. Request a quote today.

Read More
  • Configurations
  • Resources
--, 503
See Configuration Details
  • 503

    Frequency Range, 10 Hz To 3.6 GHz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cover Front

    Qty: 1
  • Mouse Optical

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 503, B25, EA3, N9064A, N9064A-1FP, N9064A-2FP
See Configuration Details
  • 503

    Frequency Range, 9 kHz To 3.6 GHz

  • B25

    Analysis Bandwidth, 25 Mhz

  • EA3

    Electronic Attenuator, 3.6ghz

  • N9064A

    Vxa Vector Signal Analysis Measurement Application

  • N9064A-1FP

    Vector Signal Analysis Application, Vxa, Fixed Perpetual License

  • N9064A-2FP

    Flexible Digital Modulation Analysis Measurement Application, Fixed Perpetual License

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cover Front

    Qty: 1
  • Mouse Optical

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 503, B25, EMC, FSA, N9061A-2FP, N9080A-1FP, P03
See Configuration Details
  • 503

    Frequency Range, 9 kHz To 3.6 GHz

  • B25

    Analysis Bandwidth, 25 Mhz

  • EMC

    Basic Emc Functionality License

  • FSA

    Fine Resolution Step Attenuator

  • P03

    Preamplifier, 3.6 Ghz

  • N9061A-2FP

    Remote Language Compatibility, 856xe/Ec, Fixed Perpetual License

  • N9080A-1FP

    Lte-Fdd Measurement Application, Fixed Perpetual License

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cover Front

    Qty: 1
  • Mouse Optical

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
