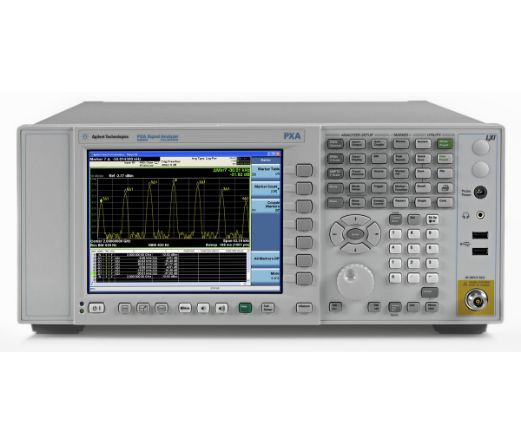

Keysight Technologies N9030A-503

3.6 GHz PXA Signal Analyzer, Type N (f)

The Keysight (formerly Agilent) N9030A-503 is a high frequency Signal Analyzer, which can be used for a variety of measurement and analysis purposes. It belongs to the X-series of signal analyzers, which promises improved performance and flexibility, while reducing uncertainty in measurements. Some of the key specifications include:


  • 3 Hz to  3.6 GHz
  • 10 MHz (standard), 25, 40 or 140 MHz analysis bandwidth
  • 12 markers, marker table, and simultaneous detectors


  • /-0.19 dB absolute amplitude accuracy
  • 20 dBm third order intercept (TOI)
  • -172 dBm displayed average noise level (DANL)
  • -83 dBc W-CDMA ACLR dynamic range (with noise correction on)

Measurement Applications & Software:

  • Noise figure, pulse, phase noise and more
  • Advanced analysis of more than 70 signal formats; software runs inside the PXA
  • MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation

Automation & Communication Interface:

  • LXI class C compliant, SCPI and IVI-COM
  • USB 2.0, 1000Base-T LAN, GPIB
  • Programming remote language compatibility with PSA, 8566/68, and 856x
  • Common X-Series user interface/Open Windows XP operating system

Get the Keysight N9030A-503 Signal Analyzer for rent or purchase 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.

Read More
  • Configurations
  • Resources
--, 503
See Configuration Details
  • 503

    Frequency Range, 3 Hz To 3.6 Ghz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cover Front

    Qty: 1
  • Keyboard USB

    Qty: 1
  • Mouse Optical

    Qty: 1
  • USB Drive 4 GB

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
