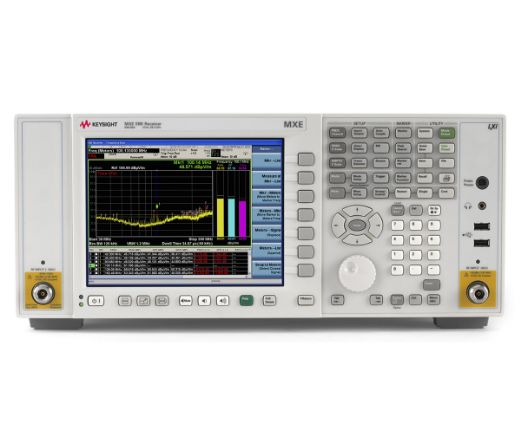

Keysight Technologies N9038A-526
26.5 GHz EMI test receiver, Type N(f)
The Keysight (formerly Agilent) N9038A-526 is an EMI analyzer, which is fully compliant with CISPR standards. This EMI receiver is extremely versatile, owing to the large number of diagnostic tools built into it, including meters, detectors, signal and measurement lists and spectrogram displays, to name a few.
The N9038A-526 can be used by laboratories and manufacturers alike for a variety of applications, including product development and test automation.
Key Features and Functions
- Perform EMC tests with a standard-compliant receiver: CISPR 16-1-1 & MIL-STD-461
- Keep the test queue flowing with the accuracy, repeatability & reliability you need to test with confidence
- Reduce overall scan time with time domain scanning enabled by fast FFT scans
- Easily identify the frequencies of peak emissions prior to final measurement with monitor spectrum
Enhanced diagnostics using spectrum & real-time analysis, Strip Chart, markers, span zoom, zoom span & spectrograms - DC Frequency Range: 20 Hz to 26.5 GHz
- AC Frequency Range: 10 MHz to 26.5 GHz
- Absolute Amplitude Accuracy: /- 0.68 dB at 1 GHz
- Displayed Average Noise Level (DANL): -167 dBm (with preamplifier)
- Resolution Bandwidths: 3 dB
Obtain the Keysight (formerly Agilent) N9038A-526 EMI analyzer from TRS-RenTelco for rent or for lease. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today and avail of our 24/7, year-long customer support.
- Configurations
- Resources
--, 526, B25, P26, RF1, RF2
See Configuration Details
-
B25
Analysis Bandwidth, 25 MHz
-
526
Frequency Range, 3 Hz To 26.5 GHz
-
P26
Preamplifier, 26.5 GHz
-
RF1
APC 3.5mm Connector
-
RF2
Connector, RF Input - Type N Female
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter 3.5 mm(f) - 3.5 mm(f)
Qty: 1 -
Rackmount Kit with Handles
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 526, LSN, TDS
See Configuration Details
-
526
Frequency Range, 3 Hz To 26.5 GHz
-
LSN
External LISN control upgrade
-
TDS
Time domain scans
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Rackmount Kit with Handles
Qty: 1 -
Adapter 3.5 mm(f) - 3.5 mm(f)
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N9038A-526 Spec Sheet
