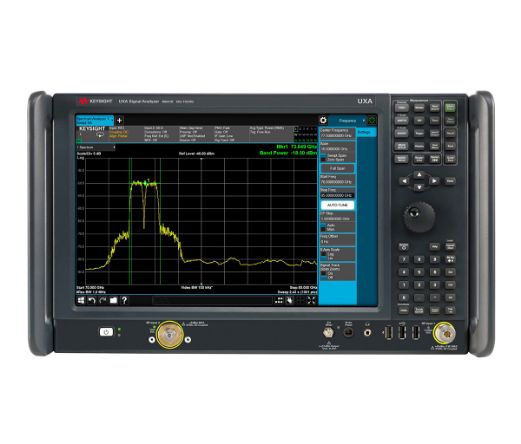

Keysight Technologies N9041B-590

90 GHz UXA Signal Analyzer Extended, 1.0 mm (m)

Characterize challenging millimeter-wave signals, such as 5G, 802.11, satellite, and radar signals with the Keysight N9041B-590 90GHz UXA signal analyzer. The N9041B-590 is capable of making continuous sweeps up to 90GHz and can capture lower-level spurious signals with DANL as low as -150 dBm/Hz (> 50GHz).

Keysight N9041B-590 Features and Specifications:

  • Frequency range:
    ? Input 1: 2Hz to 50GHz
    ? Input 2: 2Hz to 90GHz
  • Standard attenuator range: 70 dB
  • Standard attenuator step: 2 dB
  • DANL at 1GHz: -174 dBm
  • Maximum analysis bandwidth: 1GHz
  • Phase noise at 1GHz (1MHz offset): -147 dBc/Hz
  • Phase noise at 1GHz (30kHz offset): -136 dBc/Hz
  • Maximum real-time bandwidth: 255MHz
  • Minimum duration for 100 percent probability of intercept: 3.517 us
  • Detectable signal duration with signal to mask >60 dB: 3.33 ns

The Keysight (formerly Agilent) N9041B-590 90GHz UXA signal analyzer is available for rent or lease at TRS-RenTelco with 24/7 support. Contact us at 800.874.7123 for more information.

Read More
  • Configurations
  • Resources
--, 2CM, 590, CRW, H1G, N9041SA2E, N9041SA2E-R-Y5F-001-A, N9041SA2E-R-Y6F-001-L, P50
See Configuration Details
  • N9041SA2E

    Signal Analyzer Core Software for N9041B

  • N9041SA2E-R-Y5F-001-A

    Core Software node-locked perpetual license

  • N9041SA2E-R-Y6F-001-L

    Core software updates and enhancements, node-locked - 1 year

  • 2CM

    Rack Mount Flange Kit 265.9MM H (6U) - Two Flange Brackets, Two Standard Rails

  • 590

    Frequency Range, 2 Hz To 90 GHz

  • CRW

    Connector, If Out, Wide

  • H1G

    Analysis Bandwidth, 1 GHz

  • P50

    Preamplifier, 50 GHz

Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 590, H1G, N9041SA2E, N9041SA2E-R-Y5F-001-A, N9041SA2E-R-Y6F-001-L, N9068EM0E, N9068EM0E-R-Y5C-001-A, N9068EM0E-R-Y6C-001-L, N9069EM0E, N9069EM0E-R-Y5C-001-A, N9069EM0E-R-Y6C-001-L, P50
See Configuration Details
  • 590

    Frequency Range, 2 Hz To 90 GHz

  • H1G

    Analysis Bandwidth, 1 GHz

  • N9068EM0E

    Phase Noise Measurement Application

  • N9068EM0E-R-Y5C-001-A

    Node-Locked Perpetual License

  • N9068EM0E-R-Y6C-001-L

    Keysightcare Software Support SubScription, Node-Locked - 12 Months

  • N9069EM0E

    Noise Figure Measurement Application

  • N9069EM0E-R-Y5C-001-A

    Node-Locked Perpetual License

  • N9069EM0E-R-Y6C-001-L

    Keysightcare Software Support SubScription, Node-Locked - 12 Months

  • P50

    Preamplifier, 50 GHz

  • N9041SA2E

    Signal Analyzer Core Software for N9041B

  • N9041SA2E-R-Y5F-001-A

    Core Software node-locked perpetual license

  • N9041SA2E-R-Y6F-001-L

    Core software updates and enhancements, node-locked - 1 year

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • USB Drive Product Documentation

    Qty: 1
  • Adapter 2.4 mm(f) - K(f)

    Qty: 1
  • Termination 50 Ohm SMA

    Qty: 1
  • CHANNEL INPUT Y1900B ADAPTER,1mm (f) to 1mm (f) RF input 2 connector saver ( ordering #Y1900B )

    Qty: 1
  • Adapter Channel Input 1 mm(f) - 1.85 mm(f)

    Qty: 1
  • Power cord Right Angle

    Qty: 1
  • Adapter 2.4 mm(f) - 2.4 mm(f)

    Qty: 1
  • Wrench Torque Dual Headed 14 mm Open Ends 4 lb/in and 10 lb/in

    Qty: 1
  • Cover Front Impact Gray

    Qty: 1
  • Cover Impact Rear Phantom Gray

    Qty: 1
  • Vise Kit UXA

    Qty: 1
