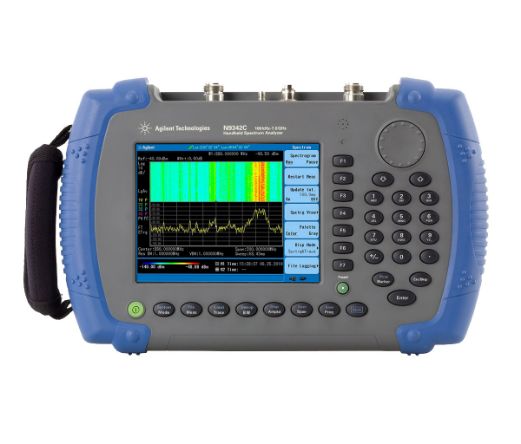

Keysight Technologies N9342C
7 GHz Handheld Spectrum Analyzer, Type N(f)
Perform highly effective sensing and instrumentation, process signals accurately, and get reliable test and measurement results with the Keysight N9342C Handheld spectrum analyzer.
Weighing 3.2 kg, the N9342C spectrum analyzer is weather-resistant and rugged, and delivers the best measurement performance and field test automation. The Keysight N9342C can be used for analog demodulation, field strength measurement, stimulus response, remote language compatibility, and spectrogram.
Keysight (Formerly Agilent) N9342C Features & Specifications:
Functionality
- Spectrum analysis frequency range 100 kHz to 7 GHz (tunable to 9 kHz)
- Cable and antenna test 5 MHz to 7 GHz
- Built-in GPS receiver and GPS antenna
- Built-in tracking generator and VSWR bridge
Performance
- -152 dBm displayed average noise level (DANL)
- /-1.5 dB amplitude accuracy
- 10 dBm third order intercept (TOI)
- < 0.4 s sweep time for 7 GHz full span
Measurement Applications and Software
- Channel scanner measures up to 20 channels simultaneously
- Spectrum monitor with spectrogram display, record, and playback
- High-accuracy power measurement with Keysight (formerly Agilent) U2000 Series USB power sensors
- AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis
Get the Keysight N9342C Handheld spectrum analyzer for rent or lease at TRS-RenTelco with 24/7 expert support. Request a quote or contact us for details.
- Configurations
- Resources
--, BAT, BCG, SCC, TG7
See Configuration Details
-
..
Base Model
-
BAT
Accessory Spare Battery Pack
-
BCG
Accessory External Battery Charger
-
SCC
Accessory Ergonomic Soft Carrying Case With Backpack And Shoulder Strap
-
TG7
Tracking Generator, 5 Mhz To 7 Ghz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 2 -
Cable USB-A - USB-MiniB
Qty: 1 -
Earphone
Qty: 1 -
Battery Lithium Ion
Qty: 2 -
Screwdriver Cross Slot 50 mm LG Of MET Part
Qty: 1 -
Power Supply Switching 15 V 5.33 A 80 W
Qty: 1 -
Softcase with Backpack and Shoulder Strap
Qty: 1 -
Battery Charger Kit
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
