Keysight Technologies N9914A
FieldFox RF Analyzer, 6.5 GHz, Type N(f)
Rent or Lease

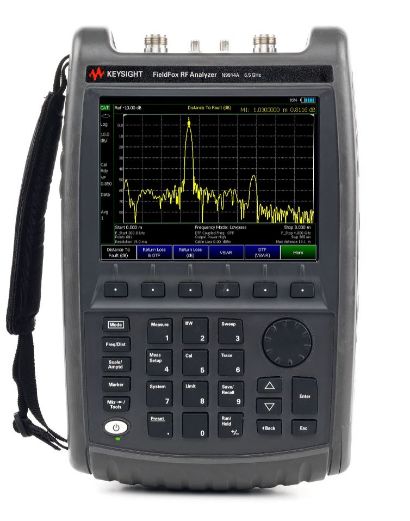

The Keysight (formerly Agilent) N9914A FieldFox Radio Frequency (RF) Analyzer is a handheld, highly portable device. The N9914A may be compact but isn't short on capabilities - it comes equipped with a maximum frequency of 6.5 GHz. The FieldFox N9914A has been developed with on-site use and portability in mind, and has quite a few technological features.
With these features you can use the Keysight N9914A FieldFox analyzer in a variety of applications, which include AM/FM tuning, cable trimming, cable & antenna analysis, power measurements, and field strength measurements.
Key Features & Specifications of Keysight N9914A
Cable and antenna analyzer (CAT), vector network analyzer (VNA)
- Frequency Range: 30 kHz to 6.5 GHz
- Dynamic Range: 95dB
- CAT: Distance-to-fault, return loss, cable loss
- VNA: S11, S21, S22, S12, magnitude and phase
- Number of built in ports: 2
- DANL @ 1 GHz: -155 dBm
Spectrum analyzer
- Frequency Range: 5 kHz to 6.5 GHz
- <> 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to 55 C (14 to 131 F)
- Spur-free dynamic range at 2.4 GHz 2/3 (TOI-DANL) in 1 Hz RBW; Nominal >105dB
TRS-RenTelco offers the Keysight (formerly Agilent) N9914A FieldFox RF analyzer for rent or for lease. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the N9914A analyzer with minimal lead time. Request a quote today.
- Configurations
- Resources
--, 010, 210, 211, 233, 307, 309
See Configuration Details
-
010
Vector Network Analyzer Time Domain
-
-211
Vector Network Analyzer Full 2-Port S-Parameters
-
-233
Spectrum Analyzer
-
210
Vector Network Analyzer Transmission/Reflection
-
307
GPS Receiver
-
309
DC Bias Variable-Voltage Source
-
211
Vector Network Analyzer Full 2-Port S-Parameters
-
233
Spectrum Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power cord Right Angle
Qty: 1 -
Softcase with Backpack Strap
Qty: 1 -
Cable Patch Cat5e RJ45(m) - RJ45(m) Straight
Qty: 1 -
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 210, 233, 235
See Configuration Details
-
210
Vector Network Analyzer Transmission/Reflection
-
233
Spectrum Analyzer
-
235
Preamplifier
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Softcase with Backpack Strap
Qty: 1 -
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
Softcase with Backpack Strap
Qty: 1 -
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 112, 215, 233, 235, 307, 370, 371
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 210, 233, 235, 310
See Configuration Details
-
210
Vector Network Analyzer Transmission/Reflection
-
233
Spectrum Analyzer
-
235
Preamplifier
-
310
Built-in power meter
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1 -
Cord Power
Qty: 1 -
Softcase with Backpack Strap
Qty: 1 -
Cable RJ45 Straight Thru
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
AC Adapter
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
