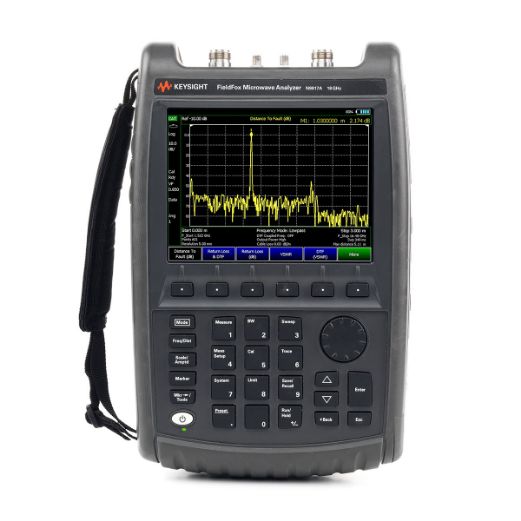

Keysight Technologies N9917A
FieldFox Microwave Analyzer, 18 GHz Type N(f)
Rent or Lease
The Keysight (formerly Agilent) N9917A FieldFox Microwave Analyzer is a handheld, highly portable device. The N9917A may be compact but isn't short on capabilities - it comes equipped with a max frequency of 18 GHz. The FieldFox N9917A has been developed with on-site use and portability in mind, and has quite a few technological features. Primarily a cable and antenna analyzer, the N9917A can also be configured to work as a spectrum analyzer, power meter, and a vector network analyzer.
Key Features & Specifications of Keysight N9917A
Cable and antenna analyzer (CAT), vector network analyzer (VNA)
- Frequency Range: 30 kHz to 18 GHz
- Dynamic range: 91 dB
- CAT: Distance-to-fault, return loss, cable loss
- VNA: S11, S21, S22, S12, magnitude and phase
- Output Power: -4 dBm
- Trace Noise: 0.004 dBrms
- No. of ports: 2
- DANL @ 1 GHz: -155 dBm
- Overall amplitude accuracy: /- 0.5 dB
Spectrum analyzer
- Frequency Range: 5 kHz to 18 GHz
- <> 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to 55 C (14 to 131 F)
- Spur-free dynamic range at 2.4 GHz 2/3 (TOI-DANL) in 1 Hz RBW; Nominal >105dB
Rent or Lease the Keysight (formerly Agilent) N9917A FieldFox microwave analyzer with technical support. Our team of technicians and metrologists calibrate all equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the N9917A analyzer with minimal lead time. Request a quote today.
- Configurations
- Resources
--, 112, 210, 233, 235, 236
See Configuration Details
-
112
Quickcal
-
210
Vector Network Analyzer Transmission/Reflection
-
233
Spectrum Analyzer
-
235
Preamplifier
-
236
Interference Analyzer and Spectrogram
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power cord Right Angle
Qty: 1 -
Softcase with Backpack Strap
Qty: 1 -
Cable Patch Cat5e RJ45(m) - RJ45(m) Straight
Qty: 1 -
Battery 10.8V 6.4A-HR 51Wh 70W pn- 1420-0937 please do not change the description this is two different batteries they look the same one is 70W 1420-0937 & 51W 1420-0908
Qty: 1 -
Calibration Kit Open Short Load 7/16 DIN(f) DC - 6 GHz
Qty: 1 -
Cable Rugged Phase-Stable N(m) - 7/16(m) 60 in Or 1.5 m
Qty: 1 -
Void- USB Drive with Software and Manuals
Qty: 1 -
AC Adapter
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 030, 112, 208, 209, 210, 211, 212, 215, 233, 235, 236, 238, 302, 307, 308, 309, 310, 312, 330, 350, 351, 355, 356, 370, 377
See Configuration Details
-
010
Vector network analyzer time domain
-
030
Remote control capability
-
112
QuickCal
-
208
USB power sensor measurements versus frequency
-
209
Extended range transmission analysis (ERTA)
-
210
Vector network analyzer transmission/reflection
-
211
Vector network analyzer full 2-port S-parameter
-
212
1-port mixed-mode S-parameters
-
215
TDR cable measurements
-
233
Spectrum analyzer
-
235
Pre-amplifier
-
236
1
-
238
1
-
302
1
-
307
q
-
308
1
-
309
1
-
310
1
-
312
1
-
330
1
-
350
1
-
351
1
-
355
1
-
356
1
-
370
1
-
377
1
