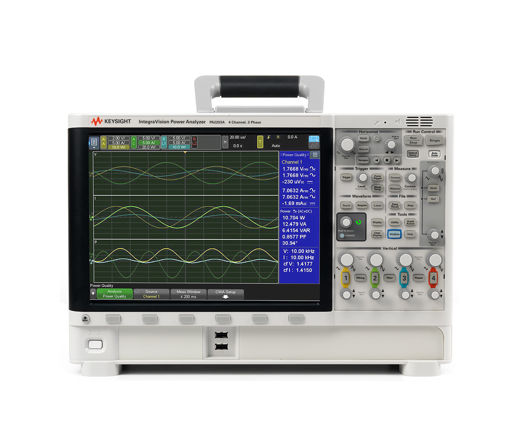

Keysight Technologies PA2203A

IntegraVision Power Analyzer, 4 channels, 3-phase

The Keysight PA2203A IntegraVision power analyzer (4 Channels, 3-Phase) is an intuitive combination of accurate power measurements and touch-driven oscilloscope visualization. Within a single instrument, it delivers the dynamic views you need to see, measure and prove the performance of your design. Use the wiring configurator to quickly create and modify complex 3-phase connections (delta and wye configurations). Verify 3-phase connections and visualize phase relationships with the phasor diagram.

Get your design and validation work done quickly, accurately and confidently with IntegraVision PA2203A to address multiple test scenarios with the flexibility of wide-ranging, isolated inputs. Visualize transients, in-rush currents and state changes with a high-speed digitizer that captures voltage, current and power in real time. Analyze power losses in the time and frequency domains using full Nyquist rate-based computations.

The important specifications of the Keysight PA2203A power analyzer include: Bandwidth:

  • 2.5 MHz
  • No. of Channels: 4
  • Sampling Rate: 5 M Samples/sec
  • Maximum Voltage: 1000 V RMS/ 2000 V Peak
  • Maximum Current Direct Input: 2 A/ 6 A Peak
  • Basic Accuracy: 0.05%

To get the Keysight (formerly Agilent) PA2203A power analyzer for rent or for lease, contact TRS-RenTelco today. The equipment is calibrated by our experienced team of metrologists and technicians to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the product with minimal lead time and provide and take advantage of our 365-day customer support. Request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cover Front Protection

    Qty: 1
  • Adapter 3-Position Green Terminal Large

    Qty: 4
  • USB Drive with Software and Manuals

    Qty: 1
