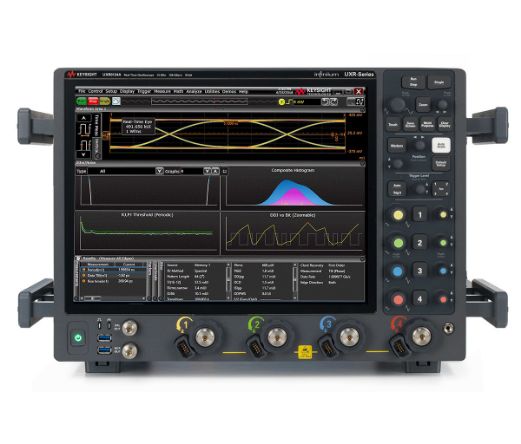

Keysight Technologies UXR0134A
4Ch 13 GHz, 128 GSa/s, Infiniium UXR Real-Time Oscilloscope
Rent or Lease
The Keysight UXR0134A 13 GHz, 4-channel, UXR-series real-time Infiniium oscilloscope with ultra-high performance allows you to achieve advanced technology breakthroughs with full bandwidth and channel upgradability up to 110 GHz.
Allowing you to get the most accurate representation of your signal with ultra-low noise floor, the Keysight UXR0134A facilitates higher modulation standards with 10-bit ADC and superior ENOB performance. It's the industry's most precise real-time oscilloscope and decreases the timing error of your dual-polarization coherent modulation with 4 full-bandwidth channels, all in one instrument.
Keysight UXR0134A - Features and Specifications:
- Bandwidth of 13 GHz
- 4 full bandwidth channels
- 10 bit ADC
- 128 GSa/s sample rate on all channels
- Up to 2 Gpts of memory
- Highest ENOB at bandwidths upgradeable up to 110 GHz
- Less than 1 mVrms of noise - making it industry's lowest noise floor
- Lowest jitter in the industry: Intrinsic jitter - less than 25 fsrms and Inter-channel jitter - less than 35 fsrms
- AutoProbe II interface is compatible with your existing InfiniiMax probes
- Optional calibration module for on-site self-calibration
- Has high-speed SDA and Clock Recovery
- User-defined functions
The Keysight UXR0134A comes with 365-day customer support and is available for rent or lease at TRS-RenTelco.
Contact us to learn more or request a quote today.
