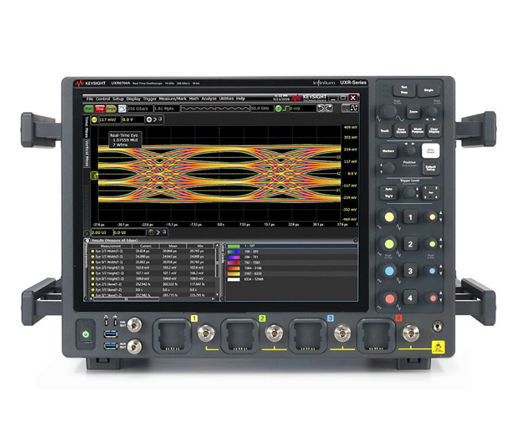

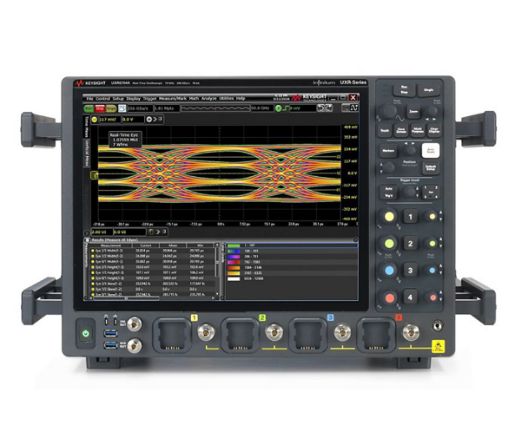

Keysight Technologies UXR0704A

Infiniium UXR Real-Time Oscilloscope, 70 GHz, 256 GSa/s, 4Ch

Develop the next-generation of electronic research and design with the Keysight UXR0704A Infiniium UXR real-time oscilloscope.

The Keysight (formerly Agilent) UXR0704A is the most powerful oscilloscope in the world with the lowest noise and jitter floors, the highest signal fidelity, 10-bit high-definition ADC, 20 femtoseconds (typical) of intrinsic jitter for exceptional jitter characterization, deep memory, and hardware-accelerated processing.

The UXR0704A offers bandwidth upgradability along with high signal integrity to keep up with evolving technological needs. It also includes high-speed SDA and clock recovery, user-defined functions, and an optional calibration module.

Keysight UXR0704A Features and Specifications:

  • Number of channels: Four
  • Maximum bandwidth: 70GHz
  • Maximum sampling rate: 256GSa/s
  • Input connector type: 1.85mm male with AutoProbe III jack
  • Memory depth per channel: 200Mpts (standard) and 2Gpts (maximum)
  • Minimum input power:
    - Four-channel: 200Vac
    - Two-channel: 110Vac
  • Input impedance: 50 ohmes, plus/-3 percent
  • Displayed input sensitivity: 1mV/div to 500mV/div
  • Hardware sensitivity: 60mV full scale to 4.0V full scale
  • Vertical resolution: 10 bits, > 14 bits with averaging
  • ENOB typical:
    - At > 400 mVfs: 5.4
    - At 40 mVfs: 5.0
  • Offset accuracy: plus/- 2 percent of channel offset 1 percent of full scale

The Keysight (formerly Agilent) UXR0704A Infiniium UXR real-time oscilloscope is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Wrench Torque 8 in/lb 5/16 in Open End

    Qty: 1
  • ESD Mat with Ground Cord Anti-Static

    Qty: 1
  • Mouse Optical Wheel

    Qty: 1
  • Adapter APC 3.5 mm(f) - APC 3.5 mm(f)

    Qty: 1
  • Load(m) 50 Ohm

    Qty: 1
  • Bag Logo Accessory Large

    Qty: 1
  • Keyboard MINI

    Qty: 1
  • Case Accessory Plastic

    Qty: 1
  • Heel Ground Strap

    Qty: 2
  • Power Cord Heavy Duty

    Qty: 1
  • CHANNEL INPUT Y1900B ADAPTER,1mm (f) to 1mm (f) RF input 2 connector saver ( ordering #Y1900B )

    Qty: 4
  • Case Scope

    Qty: 1
  • Wrench Torque Dual Headed 14 mm Open Ends 4 lb/in and 10 lb/in

    Qty: 1
  • Adapter Channel Input 1 mm(f) - 1.85 mm(f)

    Qty: 4
  • Adapter Channel Input 1 mm(f) - 2.92 mm(f)

    Qty: 1
  • Wrench 1.5 mm Thick Dual Ended Fits 8 mm

    Qty: 1
  • POWER CONVERTER KIT (provides 220V Output from 110-120V Input for UXR Scopes Requiring 220V)

    Qty: 1
  • Outlet Tester

    Qty: 1
  • Adapter Power Cord 1 ft Part Of A220-20D

    Qty: 2
  • Power Cord 3-Prong - 220 Ext

    Qty: 1
  • Wrench 2 mm Thick Dual Ended Fits 6 mm and 7 mm

    Qty: 1
  • Wrench Torque 4 in-pounds 6 mm Open End

    Qty: 1
  • Cover Front

    Qty: 1
