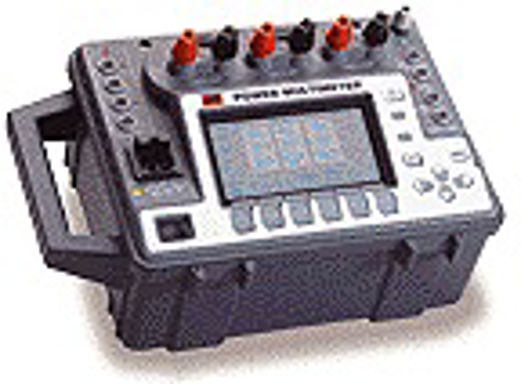

Megger PMM-1

Power Multimeter Multi-Function Measuring Instrument
The PMM-1 is a portable, battery or line operated, multi-function measuring instrument designed to measure AC primary and secondary currents, voltage power, reactive power, phase angle and frequency of single and three-phase systems. It is specifically designed to ease the testing and commissioning of protective relay systems. All measured values are displayed on a large easy-to-read graphic display. The built-in timer responds to a variety of start and stop gates. The PMM-1 is equipped with data-retention and data-logging capabilities. RS-232 data and parallel printer ports are provided; Voltage: 0 - 650 V (ac/dc), 0.01% resolution of range; Current: 0 - 100 A (ac), 0.01% resolution of range; Phase Angle: 0 - 360.00 degrees or /-0 -180.00 degrees, 0.01 degree resolution; Power: 0 - 100 KW, 0.1% resolution
Read More
  • Configurations
  • Resources
835312, 835314
See Configuration Details
  • 835312

    Potential Leads

  • 835314

    Current Leads

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Manual Instruction

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Cable Set Voltage Set Of 4 Red Yellow White Blue

    Qty: 1
  • Cable Set Current 3-Red 3-Black

    Qty: 1
  • CD Software for PMM-1

    Qty: 1
