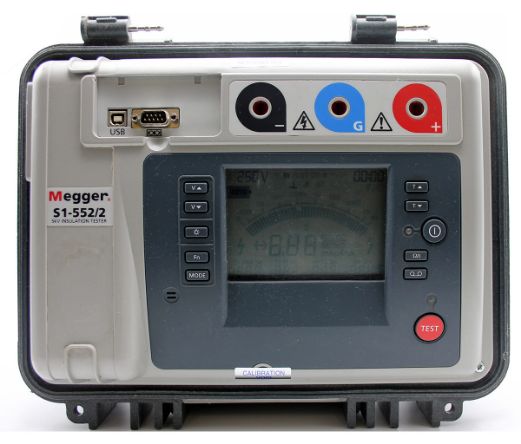

Megger S1-552/2
5 kV Insulation Tester
The Megger S1-552/2 resistance tester is designed for the testing and maintenance of high voltage equipment. The S1-552/2 CAT IV 600 V safety rating makes it safe for use in the widest range of applications. The instruments drive 5 mA of short circuit current allows for faster charging and testing of large capacitive and inductive loads.
The measurement range of the Megger S1-552/2 has been expanded to 15 T Ohms. The lapsed time is displayed constantly, removing the need for separate timers. The S1-552/2 features include up to three timed measurement positions, which simplifies DAR testing.
The large backlit LCD on the Megger S1-552/2 makes for easy visibility in both bright sunlight and poorly lit environments. Information displayed on the S1-552/2 includes resistance, voltage, leakage current, capacitance, battery status and time constant.
Megger S1-552/2- Features and Specifications:
- Electrical safety - CAT IV 600 V
- The equipment can run on mains or can be powered by batteries
- Easily readable backlit display - Digital or Analog
- Variable test voltage from 50 to 5000 V
- Automatic IR (insulation resistance), PI (polarization index), DAR (dielectric absorption ratio), SV (step voltage) and DD (dielectric discharge) testing
- Insulation range measurement - 15 TO (5 kV model) and 35 TO (10 kV model)
- Fast charging with 5mA output current
- Ease of download - RS232 and USB (result download to Megger Download Manager)
- Error free record keeping with on board memory/result storage
The Megger S1-552/2 is available for lease or purchase from TRS-RenTelco with 24/7 customer support.
The latest test equipment - We understand your interests in having the latest and the best in test equipment and are one of the first to buy newly introduced equipment from top T&M manufacturers. If you need a new equipment model, we probably have
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable DB 9(f) - DB 9(f)
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
Pouch Lid Mounted
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Software Download Manager
Qty: 1 -
LEAD SET with 3KV INSULATED CLIPS, 3meter
Qty: 1 -
LEAD SET with 3KV INSULATED CLIPS, 3meter
Qty: 1 -
LEAD SET with 3KV INSULATED CLIPS, 3meter
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Megger S1-552/2 Spec Sheet
S1 552 5kV Insulation Tester
Megger S1-552/2 Manual
