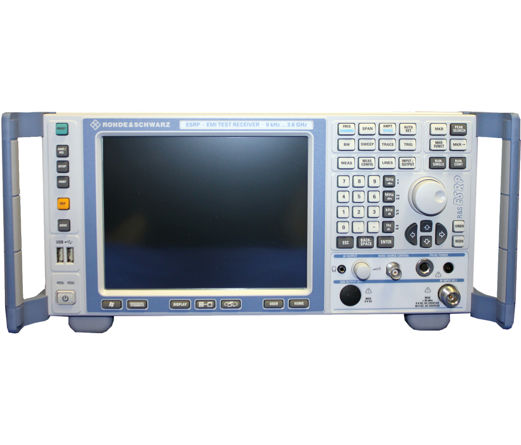

Rohde & Schwarz ESRP3
EMI test receiver 9 kHz to 3.6 GHz
Rent or Lease
Deliver quick diagnostic measurements in development, and prepare your product for final certification with the Rohde & Schwarz ESRP3 EMI Test Receiver.
This R&S equipment is ideal for lab applications and combines an EMI test receiver and signal/ spectrum analyzer. The R&S ESRP3 lets you measure electromagnetic disturbances with either a stepped frequency scan or an FFT-based time domain scan which enables fast measurements.
Rohde & Schwarz ESRP3 - Features and Specifications
- EMI test receiver and signal/spectrum analyzer combined in one box
- Automatic test routines
- IF analysis as an option (R&S ESRP-K56)
- Optional preselection and preamplifier (R&S ESRP-B2)
- Very fast FFT-based time domain scan as an option (R&S ESRP-K53)
- Resolution bandwidths in line with CISPR, optionally in decade steps from 10 Hz to 1 MHz (R&S ESRP-B2 preselection/preamplifier option)
At TRS-RenTelco, you can easily rent or lease the Rohde & Schwarz ESRP3 EMI Test Receiver. We offer technical support. Contact us for more details or request a quote today.&S ESRP-B2 preselection/preamplifier option)
- Weighting detectors: max. peak, min. peak, average, RMS, quasi-peak, average with meter time constant, and RMS in line with current CISPR 16-1-1 version
- Standard-compliant disturbance measurements for pulsed disturbances with repetition frequencies = 10 Hz (with R
- Configurations
- Resources
--, K53
See Configuration Details
-
K53
Time-Domain-Scan, Fft Based Scan For Fast Emi Measurements (Software License)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable DX Adapter
Qty: 1 -
USB Drive Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, B18, B2, B29
See Configuration Details
-
B18
Solid State Drive For R&S®Esrp With Windows 7 Including Instrument Firmware, Replaces Standard Hard Disk (Hardware Option)
-
B2
Preselection And Preamplifier For Emi Test Receiver R&S®Esrp (Hardware Option)
-
B29
10hz Frequency Extension Incl. 6-Db Bandwidths In Decade Steps For R&S®Esrp3/7; Retrofittable In R&S Service Center (Software License)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable DX Adapter
Qty: 1 -
USB Drive Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, K53
See Configuration Details
-
K53
Time-Domain-Scan, FFT Based Scan For Fast EMI Measurements
*This item has already been added to your cart. Check your cart for quantity and availability.
Show More
