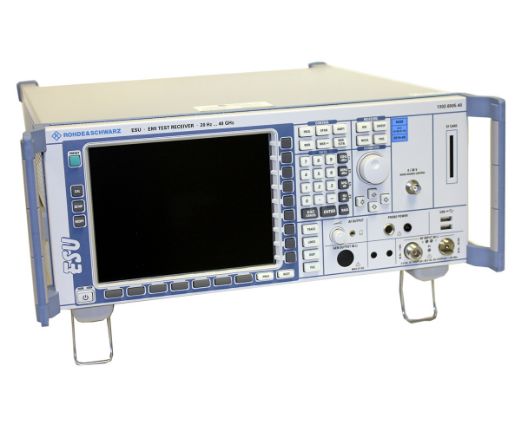

Rohde & Schwarz ESU40
EMI Test Receiver 20 Hz to 40 GHz
Rent or Lease
The Rohde & Schwarz ESU40 is a versatile device comprised of a CISPR 16-compliant EMI test receiver and high-end spectrum analyzer. The R&S ESU40 meets both commercial as well as the more stringent military standards. Primarily used for electromagnetic interference measurements, it also comes with a high speed time domain scan (FFT) option, handles real time IF analysis, and carries out automatic and interactive measurement functions.
Some of the key features of the Rohde & Schwarz ESU40 include:
- Internal preselection (can be switched off in analyzer mode)
- Integrated 20 dB preamplifier up to 3.6 GHz as standard
- Receiver mode with parallel IF analysis
- Frequency scan with a maximum of three detectors in parallel (max. 2 million test points/trace)
- Second RF input (max. 1 GHz, pulse-protected)
- Time-domain analysis for evaluation of timing behavior of disturbances (e.g. click-rate analysis)
- Fast and reliable measurements using automatic and interactive test routines
- Integrated report generator
- Optional low-noise preamplifiers up to 40 GHz (R&S ESU-B24)
TRS-RenTelco provides you the Rohde & Schwarz ESU40 EMI test receiver for rent or for lease with technical support. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the product with minimal lead time. Request a quote, by contacting us today.
- Configurations
- Resources
--, B24
See Configuration Details
-
B24
Internal Preamplifier 100kHz To 40GHz; Gain 30dB Nominal
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter Test Port K SMA100B-B120
Qty: 1 -
Adapter Test Port N 0.31 in Groove
Qty: 1 -
Cable DX Adapter
Qty: 1 -
USB Drive Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Rohde & Schwarz ESU Spec Sheet
