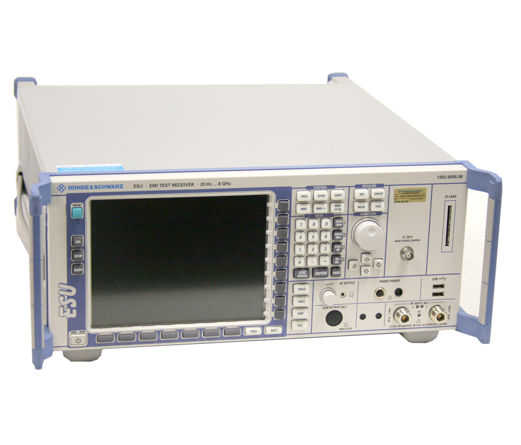

Rohde & Schwarz ESU8

EMI Test Receiver 20Hz to 8GHz

Key Facts

* Combination of CISPR 16-compliant EMI test receiver and high-end spectrum analyzer
* High speed time domain scan (FFT) option
* All commercial and military standards met
* Internal preselection (can be switched off in analyzer mode)
* Integrated 20 dB preamplifier up to 3.6 GHz as standard
* Receiver mode with parallel IF analysis
* Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
* Second RF input (max. 1 GHz, pulse-protected)
* Time-domain analysis for evaluation of timing behavior of disturbances (e.g. click-rate analysis)
* Fast and reliable measurements using automatic and interactive test routines
* Integrated report generator
* Optional low-noise preamplifiers up to 8 GHz (R&S ESU-B24)

Read More
  • Configurations
  • Resources
---, ESU-B18, FSP-B10
See Configuration Details
  • ---

    Main Unit

  • ESU-B18

    Removable Hard Disk (Flash Card), Operating System WinXP

  • FSP-B10

    External Generator Control

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable 9-Pin(m) - Triple BNC(m)

    Qty: 1
  • Cable 9-Pin(m) - 9-Pin(m)

    Qty: 1
  • Cable DX Adapter

    Qty: 1
  • USB Drive for ESU with WIN XP

    Qty: 1
  • USB Drive Manuals

    Qty: 1
