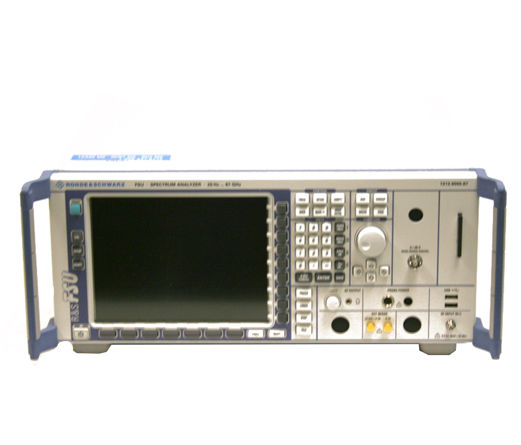

Rohde & Schwarz FSU67

67 GHz Spectrum Analyzer, 1.85 mm (f)

The Rohde & Schwarz FSU67 is a spectrum analyzer that offers a bandwidth of up to 67 GHz. Here are some of the key specifications of the FSU67:

Key Facts

  • 20 Hz to 67 GHz
  • TOI > 20 dBm, typ. 25 dBm
  • 1 dB compression: 13 dBm (0 dB RF attenuation)
  • Displayed average noise level: -152 dBm at 2 GHz; -148 dBm at 26 GHz (1 Hz bandwidth)
  • Typ. 77 dB ACLR for 3GPP, typ. 84 dB with noise correction
  • Phase noise: typ. -160 dBc (1 Hz) at 10 MHz carrier offset
  • Noise correction

With top-notch specifications and power-packed performance, the Rohde & Schwarz FSU67 offers various benefits and features:

  • Full choice of detectors
  • Versatile resolution filters
  • Full range of analysis functions
  • High dynamic range
  • Measuring frequency deviation after settling
  • Power measurement
  • Scalar network analysis with wide dynamic range
  • Direct frequency range up to 67 GHz
  • Easy expansion of the frequency range to 110 GHz with external mixers from Rohde & Schwarz
  • Support of external mixers up to 1 THz
  • Short test cycles, high throughput
  • Fast time domain power measurement
  • List mode: combined measurement of various parameters with a single command
  • Up to 70 measurements/s in zero span via IEC/IEEE bus, including trace data transfer

Looking to rent or lease the Rohde & Schwarz FSU67? Request a quote today.

Read More
  • Configurations
  • Resources
B10, B18, B21, B28, B4, K0
See Configuration Details
  • B18

    Removable Flah Drive (Factory Installed)

  • B21

    Option: Lo/If Connections For External Mixers For Fsu26, Fsu46, Fsu50, Fsq26, Fsq40

  • B28

    Trigger Port For Fsp,Fsq,Fsu; For Indication Of Trigger Conditions

  • B4

    Ocxo 10 Mhz

  • K0

    Temp License Enables K Options

  • B10

    External Generator Control For Esu, Fsp, Fsu And Fsq And For Retrofit Of

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Termination 50 Ohm

    Qty: 2
  • USB Drive for FSU with WIN XP

    Qty: 1
  • CD Documentation

    Qty: 1
