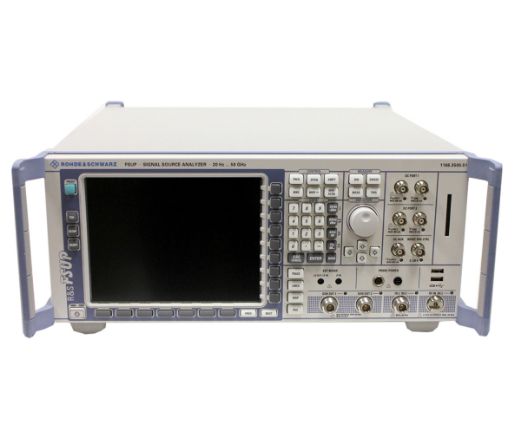

Rohde & Schwarz FSUP50

50 GHz Signal Source Analyzer, 2.4 mm (f)

The Rohde & Schwarz FSUP50 is a high performance signal and spectrum analyzer, which can also double up as a phase noise test system. Offering significant cost reductions, the R&S FSUP50 can be used in both development and production applications to measure oscillators and synthesizers, and for radar applications. Key features of the Rohde & Schwarz FSUP50 include:

  • Frequency range up to 50 GHz
  • Maximum dynamic range through cross-correlation
  • Analysis of settling in time domain
  • Oscillator characterization
  • Detection, suppression and listing of interference
  • Maximum flexibility for phase noise measurements
  • Low-noise source for supply and tuning voltages
  • Analysis of signals with digital and analog modulation

Rohde & Schwarz FSUP50 specifications:

  • Frequency Range: 20 Hz ? 50 GHz
  • Amplitude Range: DANL to 30 dBm
  • Resolution Bandwidth Range: 10 Hz ? 50 MHz
  • AM Noise: 1 MHz ? 8 GHz
  • Frequency Offset in Transient Measurement: 10 MHz ? 30 Mhz

Get the Rohde & Schwarz FSUP50 signal source analyzer for rent or purchase from TRS-RenTelco with 24/7, year-long customer support. All our equipment is calibrated to stringent standards in a 50 GHz ANSI/NCSL Z540-1 compliant laboratory by an experienced team of metrologists and technicians. Request a quote today.

Read More
  • Configurations
  • Resources
--, B60, B61
See Configuration Details
  • B60

    Option: Low Phase Noise For Cross Correlation Measurement (For Fsup8_V09, Fsup26_V27 And Fsup50_V51)

  • B61

    Cross Correlation Frequency Extension (For Fsup50, Fsup-B60 Required, Order Only With Device!)

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Adapter Test Port K

    Qty: 1
  • Adapter Test Port N 0.31 in Groove

    Qty: 1
  • Adapter Test Port - 2.4 mm(f)

    Qty: 1
  • Cable BNC(m) - BNC(m) 1 m

    Qty: 1
  • USB Drive with Manual

    Qty: 1
