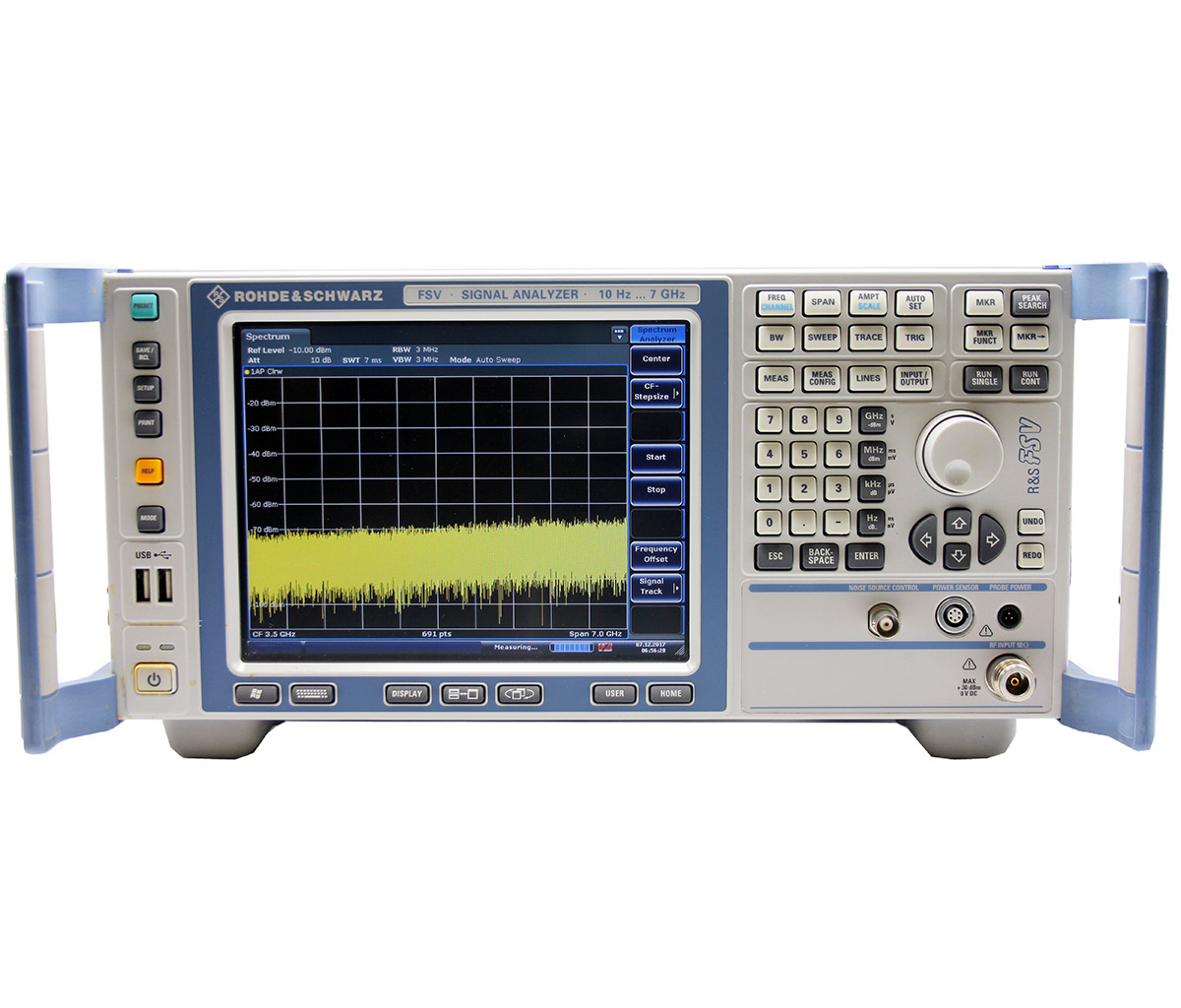

Rohde & Schwarz FSV7

7 GHz Spectrum Analyzer, Type N (f)

The Rohde & Schwarz FSV7 is signal and spectrum analyzer used to develop, produce, install and service RF systems. A touchscreen for easy operation, compact dimensions, low weight and direct support of power sensors makes the Rohde & Schwarz FSV7 the best choice for installation and service work.

In development applications, the R&S FSV7 showcases its excellence with RF properties, large bandwidth of 160 MHz signal analysis, and a wide range of analysis packages for analog modulation methods as well as wireless and wideband communications standards.

Rohde & Schwarz FSV7 - Features and Specifications:

  • Frequency range up to 4, 7, 13.6 GHz
  • 40 MHz analysis bandwidth
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • Measurement applications for GSM/EDGE (including EDGE Evo Evolution), WCDMA/HSPA , LTE, WiMAX, WLAN, CDMA2000, 1xEV-DO, vector signal analysis
  • Easy on-site upgrading with options
  • -110 dBc (1 Hz) phase noise at 10 kHz frequency offset
  • 15 dBm third order intercept (TOI)
  • Displayed average noise level (DANL) in 1 Hz bandwidth: -155 dBm at 1 GHz
  • Removable hard drive for applications

The Rohde & Schwarz FSV7 comes with 24/7 customer support and is available for rent or lease at TRS-RenTelco

The latest test equipment - We are often the first to buy newly introduced test and measurement equipment from top T&M manufacturers. If you are looking for a new equipment model, we probably have it in stock and available for rent.

Calibrated equipment - Our experienced team of metrologists and technicians calibrate each product like the Rohde & Schwarz FSV7 to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.

Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and hav

Read More
  • Configurations
  • Resources
B1, B22, B25, B29, B3, B4, B5, B70, K10, K100, K101, K7, K72, K73, K9, K91, K91N, K93
See Configuration Details
  • B1

    Ruggedized Housing With Adjustable Carrying Handle (Not Retrofittable)

  • B3

    Am/Fm Demodulator For Listening; Includes Loudspeaker, Plug For Headphone And Volume Control

  • B22

    Rf Preamplifier 20db, 9khz To 7ghz

  • B25

    Electronic Attenuator, 1db Steps

  • B29

    Frequency Extension To 20hz (Retrofittable In Service Center)

  • B4

    Ocxo, Precision Frequency Reference

  • B5

    Additional Interfaces. If/Video/Am-Fm-Demod Output, Aux Port, Trigger Output, 2 Additional Usb(A)

  • B70

    Extension To 40mhz Signal Analysis Bandwidth

  • K10

    Gsm/Edge Analysis

  • K100

    Analysis Of Lte Base Station Signals (Downlink)

  • K101

    Analysis Of Lte Uplink Signals

  • K7

    Analog Modulation Analysis For Am, Fm, Pm

  • K72

    3gpp Fdd Bs Analysis

  • K73

    3gpp Fdd Ue Analysis

  • K9

    Power Sensor Measurement With Nrp Power Sensors

  • K91

    Wlan Ieee 802.11 A/B/G/J Analysis

  • K91N

    Wlan Ieee 802.1 11n Analysis (Requires Fsv-K91)

  • K93

    Wimax Ieee 802.16 Ofdm/Ofdma Analysis

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • User Documentation for R&S FSV models

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, B22, B25, B5, K91, K91N
See Configuration Details
  • B5

    Additional Interfaces. IF/Video/AM-FM-Demod Output, Aux Port, Trigger Output, 2 Additional USB(A)

  • B22

    RF Preamplifier 20 dB, 9 kHz To 7 GHz

  • B25

    Electronic Attenuator, 1 dB Steps

  • K91

    Analysis Of WLAN 802.11A,B,G,J Signals

  • K91N

    Extension Of R&SFSV-K91 To 802.11N

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • User Documentation for R&S FSV models

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, B17, B22, B29, B4, B5, K30, K9
See Configuration Details
  • B22

    RF Preamplifier 20 dB, 9 kHz To 7 GHz

  • B17

    Digital Baseband Interface

  • B4

    OCXO Extended Frequency Stability

  • B5

    Additional Interfaces. IF/Video/AM-FM-Demod Output, Aux Port, Trigger Output, 2 Additional USB(A)

  • K30

    Noise Figure And Gain Measurements

  • K9

    Power Sensor Measurement With NRP Power Sensors

  • B29

    Frequency Extension To 20Hz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • User Documentation for R&S FSV models

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, B17, B22, B29, K101, K30, K7, K70
See Configuration Details
  • B22

    RF Preamplifier 20 dB, 9 kHz To 7 GHz

  • B17

    Digital Baseband Interface

  • B29

    Frequency Extension To 20Hz

  • K101

    Analysis Of EUTRA/LTE FDD Uplink Signals

  • K7

    Analog Modulation Analysis For AM, FM, PM

  • K70

    Vector Signal Analysis Application For Modulation Analysis Of Digital Modulated Single Carrier Signals

  • K30

    Noise Figure And Gain Measurements

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • User Documentation for R&S FSV models

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
