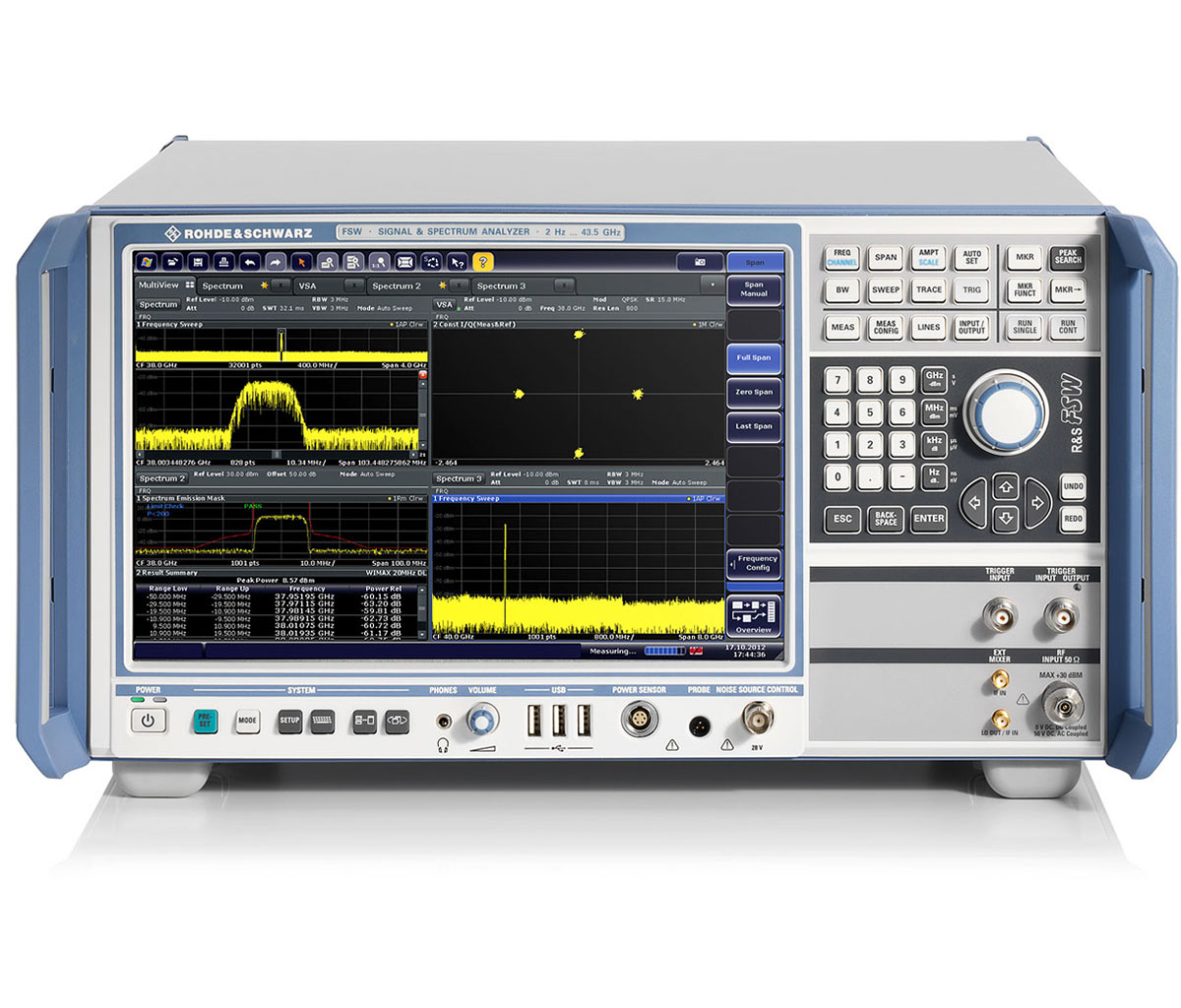

Rohde & Schwarz FSW85

85 GHz Spectrum Analyzer, 1.00 mm (m)

The Rohde & Schwarz FSW85 signal and spectrum analyzer can provide signal analysis up to 85 GHz with bandwidths up to 2000 MHz. Such expansive figures are a first on the FSW85 and for R&S test equipment. The 85 GHZ frequency has gained prominence due to the ever growing popularity and commercial significance of the 67 GHz to 85GHz frequency range band.

However, test equipment makers have faced an uphill task in developing a device that can provide spectral measurements with external harmonic mixers as is the norm in the above 50 GHz frequency range. The FSW85 successfully cracks that code, as is evident from the features listed below.

Key Features:

  • Frequency range from 2 Hz to 85 GHz
  • Low phase noise of -137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • -88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
  • Up to 2 GHz analysis bandwidth
  • < 0.4 dB total measurement uncertainty up to 8 GHz
  • Real-time analysis up to 160 MHz bandwidth
  • High-resolution 12.1<=!=> (31 cm) touchscreen for convenient operation
  • Multiple measurement applications can be run and displayed in parallel

TRS-RenTelco is your go-to electronic test equipment rental with a slew of high quality devices, calibrated to industry standards. Get the FSW85 signal analyzer for rent or lease along with round the clock customer support.

Read More
  • Configurations
  • Resources
--, B13, B160, B17, B2000, B21, B28, B3, B4, B40, B500, B80, K0, K10, K100, K101, K102, K103, K104, K105, K17, K18, K192, K193, K30, K40, K54, K6, K60, K60C, K60H, K7, K70, K72, K73, K76, K77, K82, K83, K84, K85, K91, K91AC, K91N, K91P, K95, U320
See Configuration Details
  • B13

    High Pass Filter, Improved Dynamic Range For Measurement Of Harmonics, Suppression Of Fundamental Signals From 500mhz To 1.5ghz (Software License)

  • B160

    Extension To 160mhz Signal Analysis Bandwidth, Includes Microwave Preselector Bypass

  • B17

    Digital Baseband Interface, For Signal And Spectrum Analyzer

  • B2000

    Extension To 2 Ghz Signal Analysis Bandwidth Retrofittable In R&S Service Requires An R&S®Rto1044 Oscilloscope As External Digitizer. (Hardware Option)

  • B21

    Lo/If Connections For External Mixers For R&S®Fsw85 Retrofittable In Rohde & Schwarz Service (Hardware Option)

  • B28

    Extension To 28mhz Signal Analysis Bandwidth, Includes Microwave Preselector Bypass

  • B3

    Am/Fm Demodulator For Listening; Includes Loudspeaker, Plug For Headphone And Volume Control

  • B4

    Ocxo, Precision Frequency Reference. Aging/Year : 0.35x10e-7 , Temperature Drift : 1x10e-9 (Hardware Option)

  • B40

    Extension To 40mhz Signal Analysis Bandwidth, Includes Microwave Preselector Bypass

  • B500

    Extension To 500mhz Signal Analysis Bandwidth, Includes Microwave Preselector Bypass, Excludes R&S®Fsw-B160/U160/B320, Retrofittable In R&S Service (Hardware Option)

  • B80

    Extension To 80mhz Signal Analysis Bandwidth, Includes Microwave Preselector Bypass

  • K0

    Enable K Software

  • K10

    Gsm Measurement Application, Gsm, Edge, Edge Evolution And Vamos

  • K100

    Eutra/Lte Fdd Downlink Measurement Application

  • K101

    Eutra/Lte Fdd Uplink Measurement Application

  • K102

    Eutra/Lte Downlink Mimo Measurement Application

  • K103

    Eutra/Lte Advanced Measurement Application

  • K104

    Eutra/Lte Tdd Downlink Measurement Application

  • K105

    Eutra/Lte Tdd Uplink Measurement Application

  • K17

    Multi Carrier Group Delay Measurement Application (Software License)

  • K18

    Power Amplifier And Envelope Tracking Measurement Application

  • K192

    Docsis 3.1 Ofdm Downstream Measurement Application

  • K193

    Docsis 3.1 Ofdma Upstream Measurement Application

  • K30

    Noise Figure Measurement Application, Noise Source Required, Preamplifier R&S®Fsw-B24 Recommended (Software License)

  • K40

    Phase Noise Measurement Application (Software License)

  • K54

    Emi Measurement Application For Diagnostics Of Rf Interference With Spectrum Analyzers

  • K6

    Pulse Measurement Application (Software License)

  • K60

    Transient Measurement Application (Software License)

  • K60C

    Transient Measurements, Extension Chirp Analysis, R&S®Fsw-K60 Required (Software License)

  • K60H

    Transient Measurements, Extension Hopping Analysis, R&S®Fsw-K60 Required (Software License)

  • K7

    Modulation Analysis Application For Modulation Analysis Of Analog (Am, Fm, Pm) Modulated Single Carrier Signals

  • K70

    Vector Signal Analysis Application, For Modulation Analysis On Digital Modulated Single Carrier Signals (Software License)

  • K72

    3gpp Fdd (Wcdma) Bs Measurement Application, Incl. Hsdpa And Hsdpa+

  • K73

    3gpp Fdd (Wcdma) Ms Measurement Application, Incl. Hsupa And Hsupa+

  • K76

    3gpp Tdd (Td-Scdma) Bs Measurement Application

  • K77

    3gpp Tdd (Td-Scdma) Ue Measurement Application

  • K82

    Cdma2000 Bs Measurement Application

  • K83

    Cdma2000 Ms Measurement Application

  • K84

    1xev-Do Bs Measurement Application

  • K85

    1xev-Do Ms Measurement Application

  • K91

    Wlan 802.11a/B/G Measurement Application

  • K91AC

    Wlan 802.11ac Measurement Application

  • K91N

    Wlan 802.11n Measurement Application

  • K91P

    Wlan 802.11p Measurement Application

  • U320

    Upgrade From 160mhz To 320mhz Analysis Bandwidth

  • K95

    Wlan 802.11ad Measurement Application

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable RF SMA(m) -SMA(m) 1 m

    Qty: 2
  • Cable Connecting RF B2000 SMA(m) - BNC(m) 36 in

    Qty: 1
  • Wrench Torque 0.23 nm GZ ZN-ZTW

    Qty: 1
  • Adapter Coaxial 1.00 mm(f) - 1.00 mm(f)

    Qty: 1
  • USB Drive Product Documentation

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, B2000, K60, K60C, K60H
See Configuration Details
  • B2000

    Extension To 2 GHz Signal Analysis Bandwidth Requires An R&STO1044 Or R&SRTO2044 With R&SRTO-B4 OSCilloscope As External Digitizer

  • K60

    Transient Measurement Application

  • K60C

    Transient Measurements, Extension Chirp Analysis

  • K60H

    Transient Measurements, Extension Hopping Analysis

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Connecting RF B2000 SMA(m) - BNC(m) 36 in

    Qty: 2
  • Wrench Torque 0.23 nm GZ ZN-ZTW

    Qty: 1
  • Adapter Coaxial 1.00 mm(f) - 1.00 mm(f)

    Qty: 1
  • Adapter SMA(m) - SMA(m)

    Qty: 1
  • Power Splitter

    Qty: 1
  • void- FSW / FSWP MANUALS ON USB DRIVE

    Qty: 1
