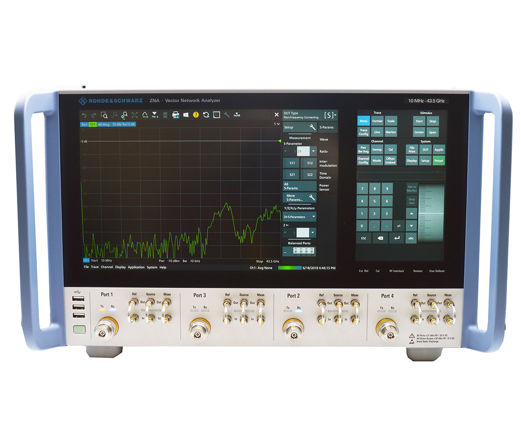

Rohde & Schwarz ZNA43

4-port, 43.5 GHz Vector Network Analyzer

Masters the most challenging measurement tasks

The R&S ZNA vector network analyzers are the high-end series of the R&S VNA portfolio: excellent RF-performance is combined with a wide range of software features and a unique hardware concept. The touch-only operation together with the DUT-centric approach makes the R&S ZNA to a powerful, universal and compact measurement system for characterizing both, passive and active devices.

Key Facts

  • 10 MHz to 26.5/43.5 GHz (R&S ZNA26/43)
  • Two or four port models available
  • Excellent RF performance
  • Up to four integrated sources
  • Unique and intuitive touch-only operation
Read More
  • Configurations
  • Resources
--, ZNA-B19, ZNA-B26, ZNA-B4, ZNA-B5, ZNA-B91, ZNA-K2, ZNA-K20, ZNA-K4, ZNA-K5, ZNA-K9, ZNA43-B16, ZNA43-B21, ZNA43-B22, ZNA43-B23, ZNA43-B24, ZNA43-B3, ZNA43-B31, ZNA43-B32, ZNA43-B33, ZNA43-B34, ZNA43-B41, ZNA43-B42, ZNA43-B43, ZNA43-B44
See Configuration Details
  • ZNA-K5

    Vector corrected converter measurements (without reference mixer and phase reference)

  • ZNA-K9

    Group delay measurements on frequency converters without LO access

  • ZNA43-B16

    Direct source and receiver access

  • ZNA43-B21

    Source step attenuator for port 1, mechanical, 70 dB in 10 dB steps

  • ZNA43-B22

    Source step attenuator for port 2, mechanical, 70 dB in 10 dB steps

  • ZNA43-B23

    Source step attenuator for port 3, mechanical, 70 dB in 10 dB steps

  • ZNA43-B24

    Source step attenuator for port 4, mechanical, 70 dB in 10 dB steps

  • ZNA43-B3

    3rd and 4th internal source

  • ZNA43-B31

    Receiver step attenuator for port 1, mechanical, 35 dB in 5 dB steps

  • ZNA43-B32

    Receiver step attenuator for port 2, mechanical, 35 dB in 5 dB steps

  • ZNA43-B33

    Receiver step attenuator for port 3, mechanical, 35 dB in 5 dB steps

  • ZNA43-B34

    Receiver step attenuator for port 4, mechanical, 35 dB in 5 dB steps

  • ZNA43-B41

    Internal pulse modulator for port 1

  • ZNA43-B42

    Internal pulse modulator for port 2

  • ZNA43-B43

    Internal pulse modulator for port 3

  • ZNA43-B44

    Internal pulse modulator for port 4

  • ZNA-B19

    Additional removable harddisc

  • ZNA-B26

    Direct IF access

  • ZNA-B4

    Precision Frequency Reference

  • ZNA-B5

    2nd internal LO source

  • ZNA-B91

    Additonal trigger and control I/O ports

  • ZNA-K2

    Time domain analysis (TDR)

  • ZNA-K20

    Extended time domain analysis incl. eye diagram

  • ZNA-K4

    Scalar mixer measurements and arbitrary frequency-converting measurements

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Semi-Rigid SMA(m) - SMA(m)

    Qty: 12
  • Cover Front Protection

    Qty: 1
  • Cover Port

    Qty: 4
  • USB Drive with Software and Manuals

    Qty: 1
