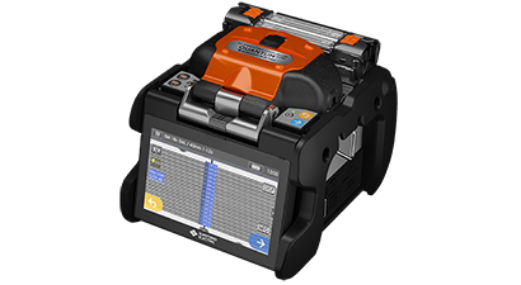

Sumitomo QULTRA-RBN16-200 New

Sumitomo Electric - Quantum-Ultra Ribbon

Sumitomo Electric announces the release of the Quantum-Ultra Ribbon – the next generation of future-proof ribbon fiber splicers. The new AI-enabled splicer with NanoTune™ technology is key to deploying next-generation hyper-scale networks. This future-proof machine has been designed to maximize work efficiency with state-of-the-art technology, including NanoTune™, E-ACAS, dual independent ovens, tool-free replaceable v-grooves, and special coatings. Using replaceable V-groove kits, the splicer becomes highly versatile  adapting to fiber counts of up to 16 and 250μm and 200μm pitch ecosystems. The Quantum-Ultra Ribbon is ready to support any network, no matter the fiber count or pitch requirements.

Quantum-Ultra Ribbon Product Highlights

• Supports ribbon sizes up to 16 fibers (and down to 1–16 fibers)
• Compatible fiber types: SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BI‑F (G.657)
• Cladding diameter: 125 µm
• Coating diameter range: 200 µm to 900 µm (with ribbon coatings 200–400 µm thickness)
• Typical splice loss: SMF 0.05 dB, MMF 0.02 dB, DSF 0.08 dB, NZDSF 0.08 dB
• Typical splice time: ≈11 seconds (SM 12C Quick Mode / SM 16C Std Mode)
• Typical heat (sleeve shrink) time: ≈28 seconds (40 mm sleeve, Quick Mode)
• Proof test range: 1.96 to 2.09 N
• Battery performance: Approx. 180 splice + heat cycles per charge (BU‑16 battery)
• Physical size and weight: 128 W × 154 D × 130 H mm; ~1.8 kg (without battery), ~2.1 kg (with battery)

Sumitomo & TRS-RenTelco

TRS-RenTelco is a proud partner of Sumitomo Electric and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Sumitomo Electric allows us to ensure we have the right Datacom Cable Test solution for your job.

Renting Datacom Cable Test

With TRS-RenTelco renting Datacom Cable Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 4,400 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
