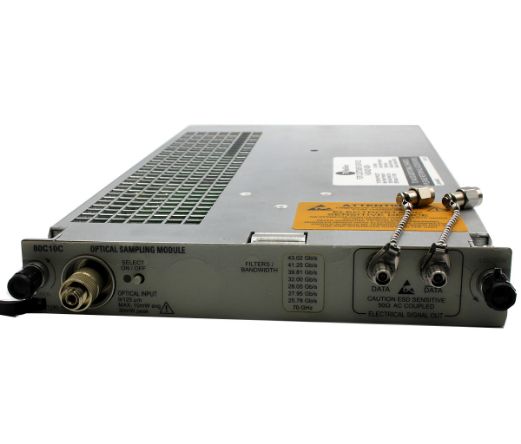

Tektronix 80C10C
80 GHz Optical Bandwidth Module
The Tektronix 80C10C Single Channel, 80 GHz Optical Sampling Module when installed in DSA8300 Digital Serial Analyzer sampling oscilloscopes, provide complete optical test solutions for normal optical component testing, telecom (125 Mb/s to 44.50 Gb/s), and datacom (gigabit Ethernet, 10 GbE, 40 GbE, 100 GbE, Fibre Channel to 16 GFC, and InfiniBand) applications.
The Tektronix 80C10C offers 80 GHz optical bandwidth and low noise capability for performance testing and signal characterization. For optimal noise versus bandwidth performance for accurate signal characterization, the 80C10C also allows the user to select bandwidths. A 70 plus GHz electrical sampling channel is optionally available with the Tektronix 80C10C as a bundled ordering configuration. Other module features include an optical-to-electrical converter, average power monitor, one or more reference receiver filters, a full bandwidth optical path, optional integrated clock recovery, optional electrical clock recovery signal pickoff and a universal optical input connector.
Tektronix 80C10C - Features and Specifications:
- Optical bandwidths of greater than 80 GHz for performance testing and signal characterization
- Short and long wavelength optical signal support in single and multi-mode options
- For standards-mandated compliance testing, optical reference receivers (ORR) support indicated requirements
- Optical mask test solutions with sensitivities to -22 dBm
- Integrated and selectable reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm of all standard 25, 40 and 100 (4 x 25) Gb/s standard rates
You can rent or lease the Tektronix 80C10C from TRS-RenTelco with 24/7 customer support.
Contact us to learn more or request a quote today
- Configurations
- Resources
--, CRTP, FI
See Configuration Details
-
CRTP
Calibrated Clock Recovery Trigger Pick-Off Option(Options Crtp And Hspr Are Mutually Exclusive)
-
FI
65 Ghz Optical Bandwidth W/ Optical Reference Receiver (Orr) Filters For All (4x) 25 And 40 Gb/S Standards
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter FC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
