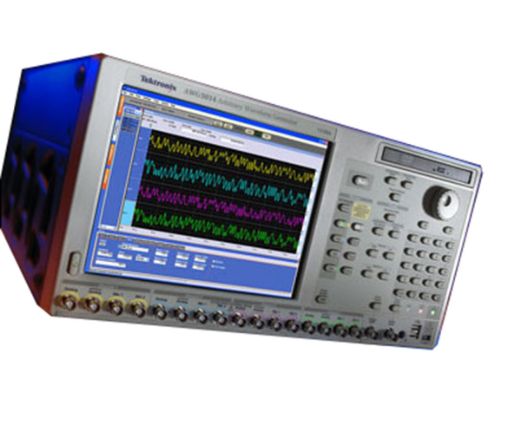

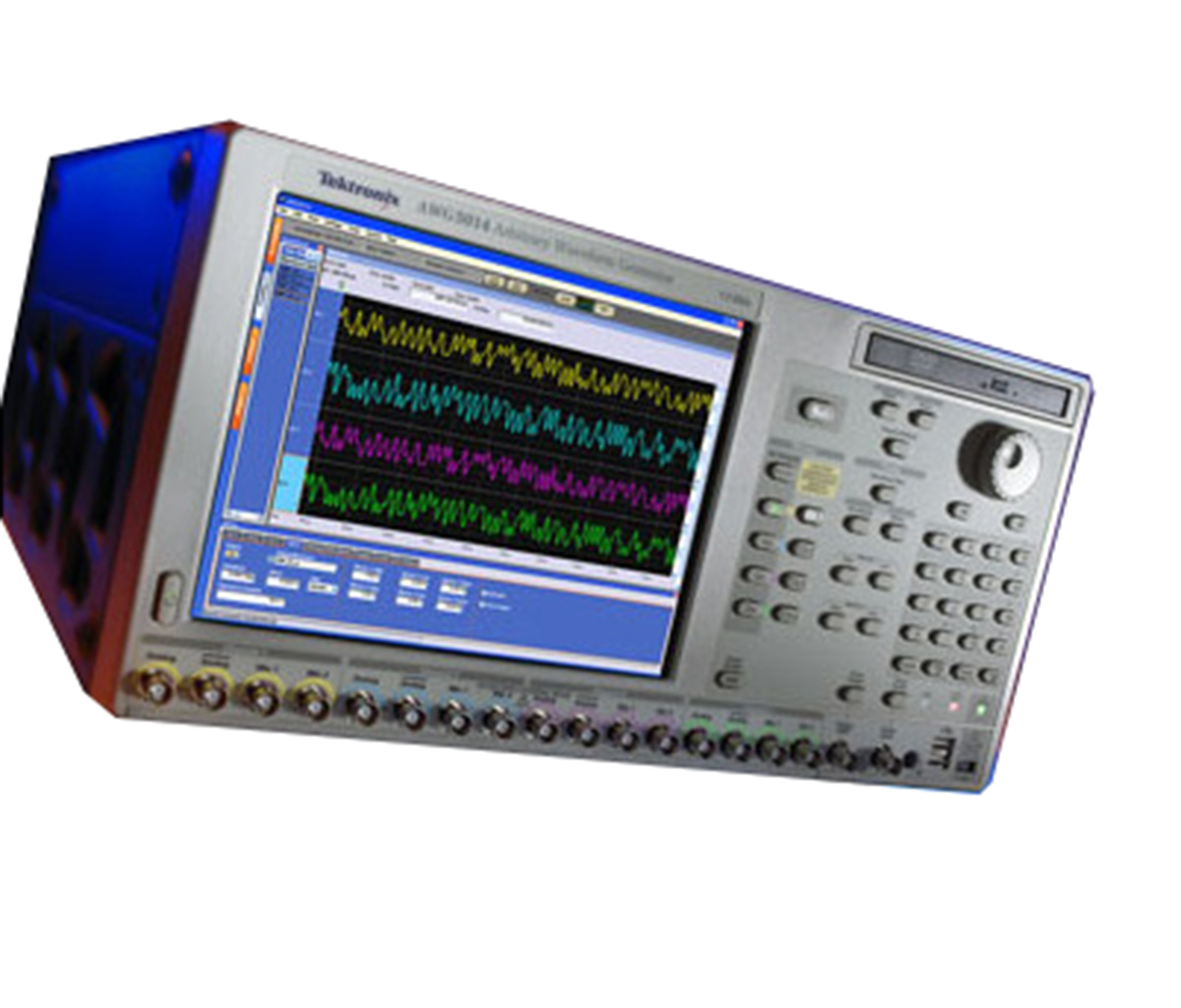

Tektronix AWG5012

Arbitrary Waveform Generator

Generate single-shot or repetitive electrical waveforms with the Tektronix AWG5012 arbitrary waveform generator. The AWG5012 has applications in the fields of analysis during testing, finding issues with an electrical device, or verifying correct operation of the device.

With superior performance in designing, testing, and deploying wireless communications, imaging, and data conversion, the AWG5012 provides the industry's best sample rates, vertical resolutions, signal fidelity, and waveform memory lengths.

Tektronix AWG5012 Features and Specifications:

  • 1.2GS/s, four-channel, 14 bits, 16 M point/channel
  • Up to 4.5 Vp-p single-ended and 9 Vp-p at differential output into 50 Ohmes
  • Foru variable-level marker outputs
  • Up to 3.7 Vp-p single-ended Output into 50 Ohmes
  • 5 ns range (50 ps resolution) inter-channel skew control
  • SFDR: 80dBc (1MHz), 64dBc (10MHz)

Rent or lease the Tektronix AWG5012 arbitrary waveform generator at TRS-RenTelco with 24/7 support. Contact us to learn more or request a quote.

Read More
  • Configurations
  • Resources
--, 03
See Configuration Details
  • 03

    28 Bit Digital Output

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power Right Angle

    Qty: 1
  • Stylus

    Qty: 1
  • Cover Front

    Qty: 1
  • Cable Assembly Electric Lead Set 8-Connector Twisted

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Keyboard Mini USB

    Qty: 1
  • CD Product Software

    Qty: 1
  • USB Drive with Software

    Qty: 1
