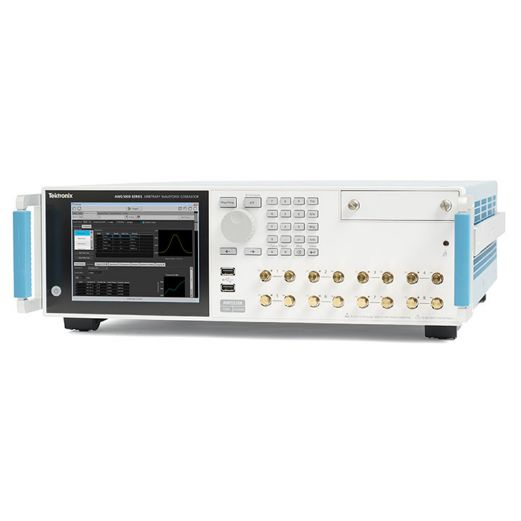

Tektronix AWG5202-250
2 ch 10 GS/s Sample Rate (Interpolated from 5 GS/s)
Rent or Lease
Use the Tektronix AWG5202-250 Arbitrary Waveform Generator to generate complex signals efficiently with faster waveform loading and cleaner RF performance.
With excellent signal fidelity, outstanding memory depth and sampling rates, this AWG offers an industry-leading high-precision signal stimulus solution. It can handle complex RF baseband signal generation and experimental applications for research, electronic test and radar, and electronic warfare system design and testing.
With the industry's best low noise floor and high scalability, the Tektronix AWG5202-250 can efficiently create modulated radar pulses as well as real-life environments from accurate, noise-free signals
Tektronix AWG5202-250 - Features and Specifications:
- Number of analog outputs: 2
- Analog output connector type: SMA female
- Analog output impedance: 50 ohms
- Number of marker outputs: 8
- Sample rate: 5 GS/s (10 GS/s interpolated)
- Resolution (nominal): 16 bits with no markers active, 15 bits with 1 marker active, 14 bits with 2 markers active, 13 bits with 3 markers active, 12 bits with 4 markers active
- Waveform memory: 2 GS/channel
- Waveform granularity: 1 sample
- Waveform minimum size: 2400 samples
- Number of auxiliary outputs (flags): 4
The Tektronix AWG5202-250 Arbitrary Waveform Generator is available for rent or lease at TRS-RenTelco with technical support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
--, AWG5200-2DC
See Configuration Details
-
AWG5200-2DC
High BandWIDTH OUTPUT
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power cord Right Angle
Qty: 1 -
Mouse Optical
Qty: 1 -
Manual Installation and Safety
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
AWG5200-250, AWG5200-2DC, AWG5200-SEQ
See Configuration Details
-
AWG5200-250
License; 10 GS/s Sample Rate (Interpolated from 5 GS/s); Node Locked
-
AWG5200-2DC
License; High Bandwidth Amplified Output; Node Locked
-
AWG5200-SEQ
License; Sequencing; Node Locked
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Manual Installation and Safety
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Mouse Optical
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
--, AWG5200-2DC, AWG5200-2HV
See Configuration Details
-
AWG5200-2DC
High BandWIDTH OUTPUT
-
AWG5200-2HV
License; High Amplitude DC-Coupled outputs for 2-channel AWG5200 Series; Node Locked
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Manual Installation and Safety
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Mouse Optical
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
