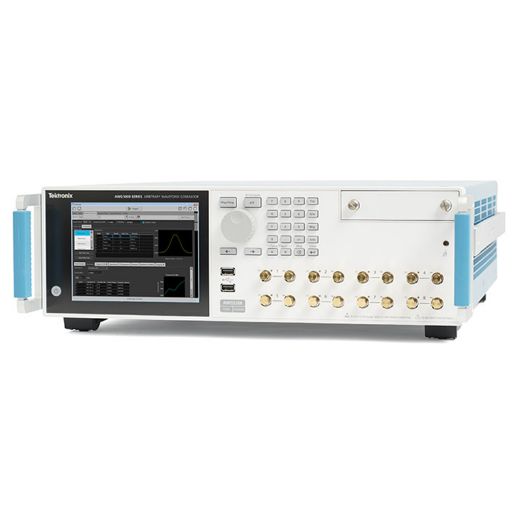

Tektronix AWG5204-450

4 ch 10 GS/s Sample Rate (Interpolated from 5 GS/s);

Achieve unrivaled signal fidelity, exceptional sampling rates and memory depth with the Tektronix AWG5204-450 Arbitrary Waveform Generator.

This AWG from Tektronix is an industry-leading signal stimulus solution for complex RF baseband signal generation and experimental applications that need high precision. With an extremely low noise floor and outstanding scalability and flexibility, the AWG5204-450 can efficiently create real-life environments and modulated radar pulses, as well as accurately play back existing captured signals.

Tektronix AWG5204-450 - Features and Specifications: ?

  • Number of channels: 4
  • Memory: 2 GS/channel
  • Vertical resolution: 16 bits with no markers active, 15 bits with 1 marker active, 14 bits with 2 markers active, 13 bits with 3 markers active, 12 bits with 4 markers active
  • Sample rate: 5 GS/s (10 GS/s interpolated)
  • Waveform minimum size: 2400 samples
  • Analog output connector type: SMA female
  • Analog output impedance: 50 ohms
  • Number of auxiliary outputs (flags): 4
  • Minimum pulse width: 400 ps

The Tektronix AWG5204-450 Arbitrary Waveform Generator is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
--, AWG5200-4HV, AWG5204-DC
See Configuration Details
  • AWG5204-DC

    License; High Bandwidth Amplified Output; Node Locked

  • AWG5200-4HV

    License; High Amplitude DC-Coupled outputs for 4-channel AWG5200 Series; Node Locked

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Power cord Right Angle

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Termination 50 Ohm SMA(m) DC - 18 GHz

    Qty: 8
  • Manual Installation and Safety

    Qty: 1
