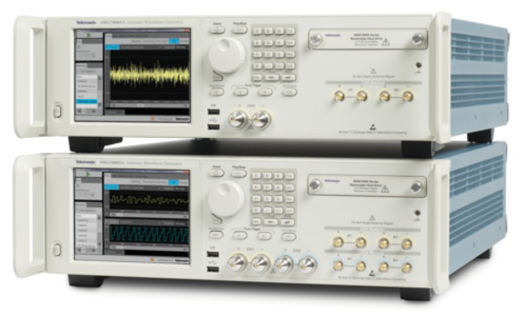

Tektronix AWG70001B

1 ch Arbitrary Waveform Generator

The Tektronix AWG70001B Arbitrary Waveform Generator (AWG) delivers on sample rate, signal fidelity and waveform memory, making it suitable for designing and testing operations of complex equipment systems, and defense electronics. This industry-leading AWG is highly reliable and rugged, and is the perfect single-box solution for creating flexible waveforms.

Use the Tektronix AWG70001B to generate high Baud rate baseband signals with fairly complex modulation for applications in optical research. With up to 50 GS/s and 10-bit vertical resolution, the AWG70001B is used for research in the fields of physics, electronics and chemistry by generating high speed, low jitter signals. It's fully operational without an external PC, and comes with built-in display and comprehensive buttons.

Widely used in validation and compliance testing of communication devices and silicon devices, this waveform generator is backed with a one-year standard warranty.

Tektronix AWG70001B - Features and Specifications:

  • Sample rates playing up to 50 GS/s with 640 ms of data
  • 10-bit vertical resolution
  • Output wideband RF signals up to 20GHz
  • -80 dBc spurious free dynamic range
  • Up to 32 GSamples of wave memory

Get the Tektronix AWG70001B Arbitrary Waveform Generator (AWG) for rent or lease at TRS-RenTelco with 24/7 support. Contact us to know more or request a quote.

Read More
  • Configurations
  • Resources
--, 150, MEM, SEQ, STRID
See Configuration Details
  • SEQ

    Add Sequencing to the AWG70001B; requires export control license

  • 150

    50 Gsamples per second

  • MEM

    License; Increase Memory to 32GS (on AWG70001B) or 16GS per Channel (on AWG70002B); Node Locked


    Add Streaming ID to the AWG70001B; requires SEQ and export control license

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Termination 50 Ohm SMA

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Receptacle Adapter Assy - 3.5 mm(f)

    Qty: 2
  • Power cord Right Angle

    Qty: 1
  • Keyboard Mini USB

    Qty: 1
  • Manual Installation and Safety

    Qty: 1
