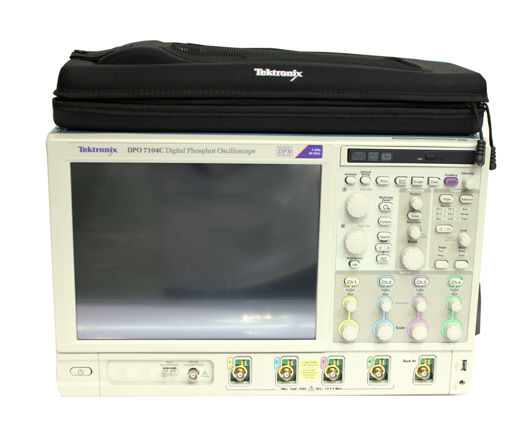

Tektronix DPO7104C
4 Ch 1 GHz Digital Oscilloscope
Rent or Lease • Buy Used From $9,400
Tektronix - DPO7104C
Perform efficient troubleshooting and effective product testing and designing with the Tektronix DPO7104C digital oscilloscope.
DPO7104C Product Highlights
• Four-channel, 1GHz bandwidth
• 5GS/s (three to four channels), 10GS/s (two channels), 20GS/s (one channel)
• Maximum record length per channel: 40M (one channel), 20M (two channels), 10M (four channels)
• Sample rate: 20GS/s one channel)
• Record length: 125M (one channel)
• Up to 500 megapoint record length with MultiView Zoom
• >250,000 wfms/s maximum waveform capture rate with FastAcq
• MultiView Zoom feature for quick navigation. MyScope custom windows, right-mouse-click menus, 12.1-inch XGATouch screen display, low-speed serial protocol triggering, OpenChoice software with Microsoft Windows XP OS, TekVPI probe interface
Tektronix & TRS-RenTelco
TRS-RenTelco is a proud partner of Tektronix and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Tektronix allows us to ensure we have the right Oscilloscopes solution for your job.
Renting Oscilloscopes
With TRS-RenTelco, renting Oscilloscopes equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
- Configurations
- Resources
--, STD
See Configuration Details
-
STD
Advanced Search and Mark, DPOJET Essentials, Visual Trigger and Search, and Limit Test all included Standard
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Set
Qty: 1 -
Cord Power
Qty: 1 -
Adjustment Tool
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Mouse Optical
Qty: 1 -
Hook Tip
Qty: 4 -
Ground Lead
Qty: 4 -
Cover Front
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, RM, STD
See Configuration Details
-
RM
Dpo7000c Rack Mount
-
STD
Advanced Search And Mark, Dpojet Essentials, Visual Trigger And Search, And Limit Test All Included Standard
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Set
Qty: 1 -
Cord Power Right Angle
Qty: 1 -
Adjustment Tool
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Mouse Optical
Qty: 1 -
Hook Tip
Qty: 4 -
Ground Lead
Qty: 4 -
Cover Front
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1 -
Rackmount Kit
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
User Manual - Tektronix Digital Phosphor Oscilloscopes
Datasheet - Tektronix DPO7000 series
