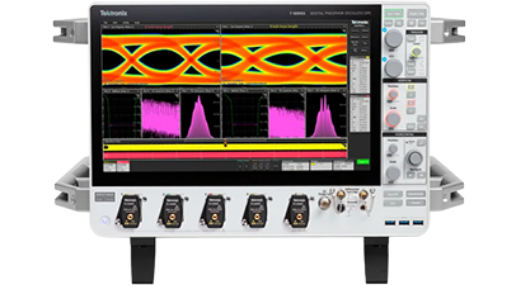

Tektronix DPO714AX
4 Ch 8 GHz Digital Serial Analyzer
Rent or Lease
Tektronix - DPO714AX
The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and an award-winning TekScope® user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications. Bandwidth ranging from 8-25 GHz and compatible with TekConnect™ probes.
Maximize test margins with the low noise and high effective number of bits (ENOB) of the 7 Series DPO. Superior measurement accuracy, sensitivity and precision are enabled with our proprietary Tek85 low noise preamp, Tek79 10-bit ADC and advanced DSP algorithms providing more accurate capture and measurement of the signals of interest.
DPO714AX Product Highlights
- Resolve and measure low amplitude signals with low noise (523 µV at 8 GHz (0.10% FS) to 1.13 mV at 25 GHz (0.23% FS), 500 mV full scale)
- High Effective Number of Bits (ENOB) enables high resolution signal digitization (7.5 bits at 8 GHz to 6.5 bits at 25 GHz, 125 GS/s, 500 mV full scale, signal 90% of full scale)
- QuietChannel™ Technology further minimizes the noise from the oscilloscope signal path utilizing active CTLE (Continuous Time Linear Equalization) to compensate for channel loss
- Fully automatic, built-in Signal Path Compensation (SPC) requires no user intervention to ensure optimal measurement accuracy by adjusting internal gain, offset, and frequency response to ensure precise signal capture and high effective number of bits (ENOB)
Tektronix & TRS-RenTelco
TRS-RenTelco is a proud partner of Tektronix and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Tektronix allows us to ensure we have the right Oscilloscopes solution for your job.
Renting Oscilloscopes
With TRS-RenTelco, renting Oscilloscopes equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Tektronix Products from TRS-RenTelco
Other Oscilloscopes from TRS-RenTelco
- Configurations
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Card (5mm, 1/4", 5/16", 3/8", 9/32", 11/32", 7/16"
Qty: 1 -
Kit Wrist Strap
Qty: 1 -
Cover Front
Qty: 1 -
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Adapter TCA-292D
Qty: 1 -
Hard Transit Case for DPO714AX
Qty: 1
