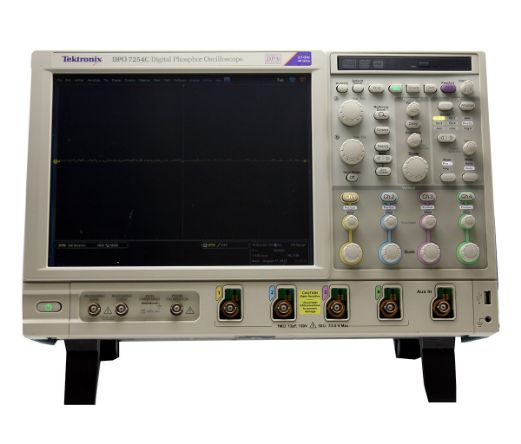

Tektronix DPO7254C

4 Ch 2.5 GHz Digital Oscilloscope

The Tektronix DPO7254C is a digital phosphor oscilloscope that forms part of Tektronix's DPO7000C series. The DPO7254C makes complex digital designs simple to analyze with its numerous features. The DPO7254C boasts features:

Key Performance Specifications

  • 3.5 GHz, 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models
  • Up to 40 GS/s Real-time Sample Rate on One Channel, up to 20 GS/s on Two Channels, and up to 10 GS/s on Three or Four Channels
  • Up to 500 Megapoint Record Length with MultiView Zoom?
  • >250,000 wfms/s Maximum Waveform Capture Rate with FastAcq?
  • FastFrame? Segmented Memory Acquisition Mode with >310,000 Waveforms per Second Capture Rate
  • User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy

Ease-of-Use Features

  • Pinpoint? Triggering provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
  • Visual Trigger Precisely Qualifies Triggers and Finds Unique Events in Complex Waveforms
  • Advanced Search and Mark to Find Specific Events in the Entire Waveform
  • MyScope? Custom Control Windows and Right Mouse Click Menus for Exceptional Efficiency
  • 53 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI? Probe Interface supports Active, Differential, and Current
  • Probes for Automatic Scaling and Units
  • 12.1 in. (307 mm) Bright XGA Display with Touch Screen

Connectivity

  • USB Host Ports on the Front and Side Panels for Quick and Easy Data
  • Storage, Printing, and Connecting USB Peripherals
  • Integrated 10/100/1000BASE-T Ethernet Port for Network Connection
  • Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
  • Micro
Read More
  • Configurations
  • Resources
--, LT, RL02, SR-CUST, VET
See Configuration Details
  • LT

    Waveform Limit Testing

  • RL02

    From Standard Record Length To Opt. 2rl

  • SR-CUST

    Custom Serial Analysis License

  • VET

    Visual Trigger And Search For 7k Series

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Set

    Qty: 1
  • Cord Power

    Qty: 1
  • Adjustment Tool

    Qty: 1
  • Adapter VGA - DVI Display

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Hook Tip

    Qty: 4
  • Ground Lead

    Qty: 4
  • Cover Front

    Qty: 1
  • Probe Passive 500 MHz x10

    Qty: 4
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, STD
See Configuration Details
  • STD

    Advanced Search And Mark, Dpojet Essentials, Visual Trigger And Search, And Limit Test All Included Standard

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Set

    Qty: 1
  • Cord Power

    Qty: 1
  • Adjustment Tool

    Qty: 1
  • Adapter VGA - DVI Display

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Hook Tip

    Qty: 4
  • Ground Lead

    Qty: 4
  • Cover Front

    Qty: 1
  • Probe Passive 500 MHz x10

    Qty: 4
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
