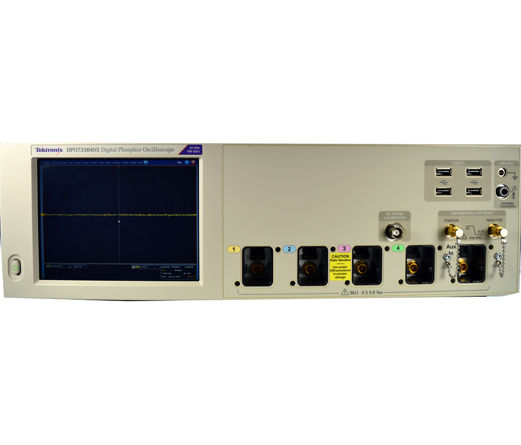

Tektronix DPO73304SX
2 at 33 GHz, 4 at 23 GHz Real-Time Oscilloscope
The Tektronix DPO73304SX Real-Time Oscilloscope uses a compact and scalable package that allows flexible system configurations and allows users to position the oscilloscope close to the device under test. The DPO77002SX provides ultra-high bandwidth real time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides low noise and high fidelity for real time signal acquisition for complex optical modulation analysis, jitter and noise analysis of high speed serial signaling and frequency, phase and modulation analysis of wideband RF signals. The DPO77002SX provides an analogue bandwidth of 70GHz which can be used in two bandwidth cannel configurations ? single channel of 70GHz bandwidth or 2 channels of 33 GHz bandwidth in a single unit. It also offers sample rates of 200GS/s and 100 GS/s, and a record length range of 62.5M points ? 1G points.
Request a quote for the Tektronix DPO77002SX at TRS-RenTelco to find out our lease and rent options today.
- Configurations
- Resources
--, DSA
See Configuration Details
-
DSA
Digital Serial Analysis Bundle (Includes 5xl: Dja: Mth: St6g)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power Cord Notched
Qty: 1 -
Mouse Optical
Qty: 1 -
Adapter TCA-292MM
Qty: 1 -
Keyboard USB
Qty: 1 -
Kit Wrist Strap
Qty: 1 -
Adapter TCA-292D
Qty: 4 -
Pouch for Accessories
Qty: 1 -
Cable 2.92(m) - 2.92(m) 1 m
Qty: 1 -
Manual User
Qty: 1 -
Unit Stacking Pin 1/4 in Diameter 9/16 in Length
Qty: 4 -
Case Hard Transit
Qty: 1 -
USB Drive Software and Manual
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix DPO73304SX Spec Sheet
