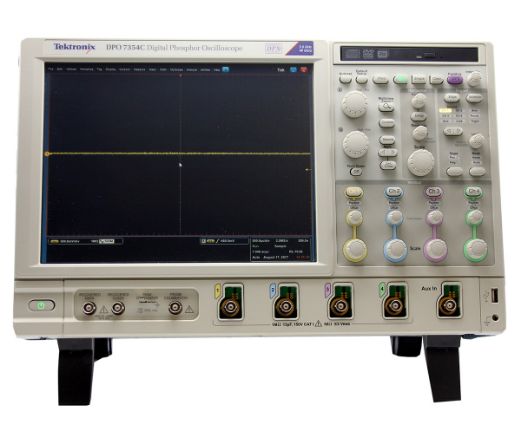

Tektronix DPO7354C
4 Ch 3.5 GHz Digital Oscilloscope
The Tektronix DPO7354C is part of the brand's DPO7000C series of scopes. With the DPO7000C Digital Phosphor Oscilloscope Series, you can analyze analog and serial bus signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 3.5 GHz and sample rates up to 40 GS/s ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the DPO7000C Series offers a deep record length of up to 12.5M points standard on all channels and an optional record length of up to 500M points on two channels. With Advanced Search and Mark and MultiView Zoom? features for rapid waveform navigation, and more than 15 optional software and analysis packages for common technologies and in-depth analysis tasks, the DPO7000C Series from Tektronix provides the feature-rich tools you need to simplify and speed debug of your complex design.
Here are the specifications of the DPO7354C Digital Phosphor Oscilloscope:
- Bandwidth: 3.5 GHz
- Rise Time 10% to 90% (Typical): 115 ps
- Rise Time 20% to 80% (Typical): 95 ps
- DC Gain Accuracy: ?1% with offset/position set to 0
- Bandwidth Limits : Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, and 20 MHz
- Effective Number of Bits: 5.6 bits
Rent or buy the Tektronix DPO7354C digital oscilloscope with 365 days customer service, request a quote today at TRS-RenTelco.
- Configurations
- Resources
--, STD
See Configuration Details
-
STD
Advanced Search and Mark, DPOJET Essentials, Visual Trigger and Search, and Limit Test all included Standard
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Set
Qty: 1 -
Cord Power
Qty: 1 -
Adjustment Tool
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Accessory Pouch
Qty: 1 -
Mouse Optical
Qty: 1 -
Hook Tip
Qty: 4 -
Ground Lead
Qty: 4 -
Cover Front
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, ASM, DJE, SR-CUST
See Configuration Details
-
ASM
ADVANCED EVENT SEARCH and MARK
-
DJE
BASIC Jitter and TIMING ANALYSIS
-
SR-CUST
Custom Serial Analysis Kit for Developers
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Set
Qty: 1 -
Cord Power
Qty: 1 -
Adjustment Tool
Qty: 1 -
Adapter VGA - DVI Display
Qty: 1 -
Accessory Pouch
Qty: 1 -
Mouse Optical
Qty: 1 -
Hook Tip
Qty: 4 -
Ground Lead
Qty: 4 -
Cover Front
Qty: 1 -
Probe Passive 500 MHz x10
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
