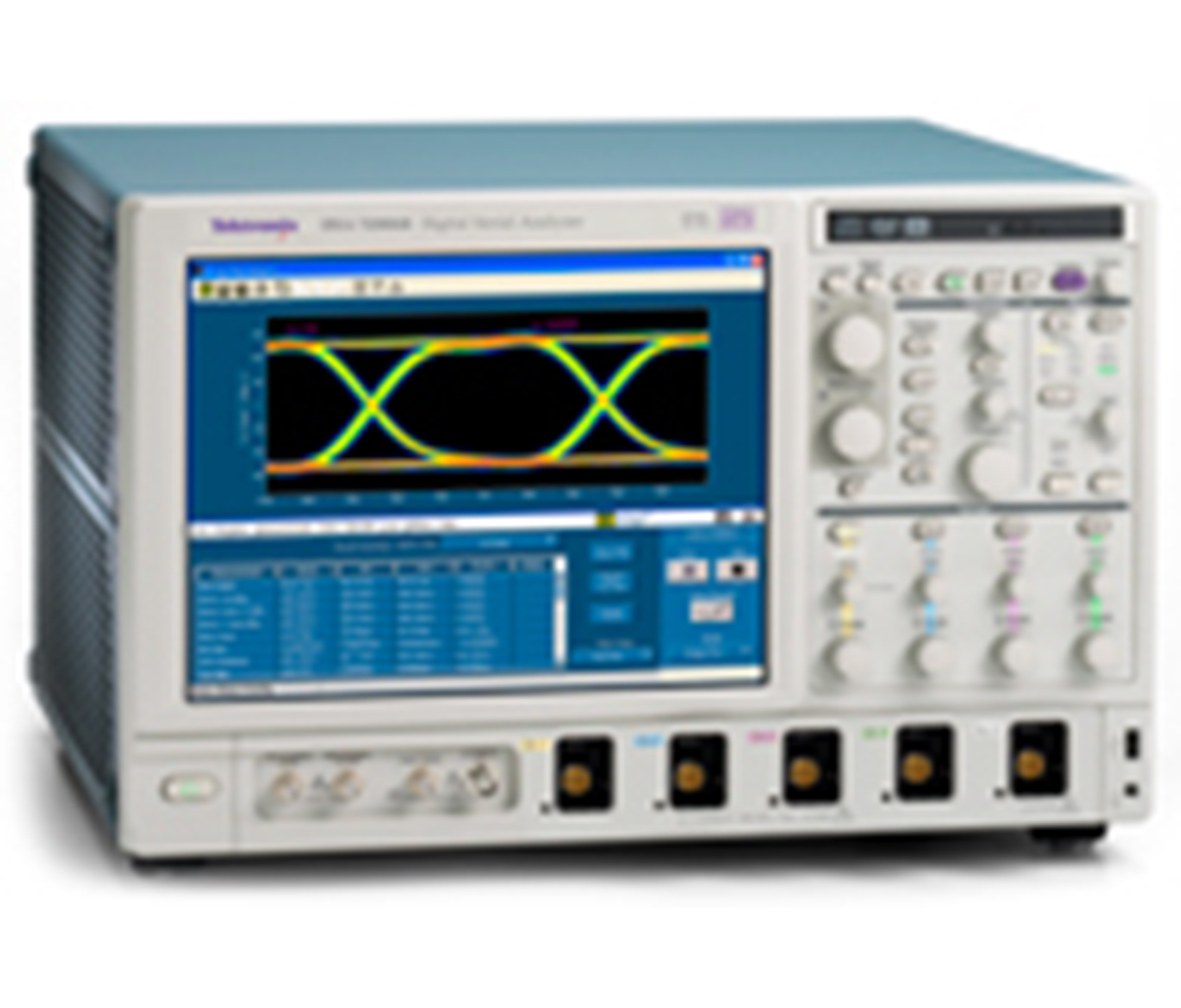

Tektronix DSA70404B
4 Ch 4 GHz Oscope
Verify, debug, characterize, and certify sophisticated electronic designs with the Tektronix DSA70404B four-channel digital signal analyzer. Perform efficient debugging and compliance testing of serial data streams. The DSA70404B has a wide range of applications, such as:
- Memory bus analysis
- Switching power supply verification
- Investigation of transient phenomena
- Spectral analysis of transient or wide-bandwidth RF signals
- Signal integrity, jitter, and timing analysis
Tektronix DSA70404B Features and Specifications:
- All four channels can be used simultaneously
- 4GHz bandwidth models
- Up to 50GS/s real-time sample rate
- Up to 250 megasample record length with multiView zoom feature for quick navigation
- Fastest waveform capture rate with >300,000 wfms/s maximum per channel
- 5Gbps real-time serial trigger
- P7500 TriMode probing system for matched signal connectivity from 4GHz to 20GHz
The Tektronix DSA70404B four-channel, 4GHz digital signal analyzer is available for rent or lease at TRS-RenTelco. Request a quote today, and receive 24/7 expert assistance.
- Configurations
- Resources
DSA
See Configuration Details
-
DSA
Dpo Opts 2xl, Asm, Ja3, Mth, Pth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power Cord Notched
Qty: 1 -
Adapter TCA-BNC
Qty: 1 -
Keyboard MINI
Qty: 1 -
Accessory Pouch
Qty: 1 -
Cover Front
Qty: 1 -
Adapter TCA-292MM
Qty: 4 -
Case Pelican Transit
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
