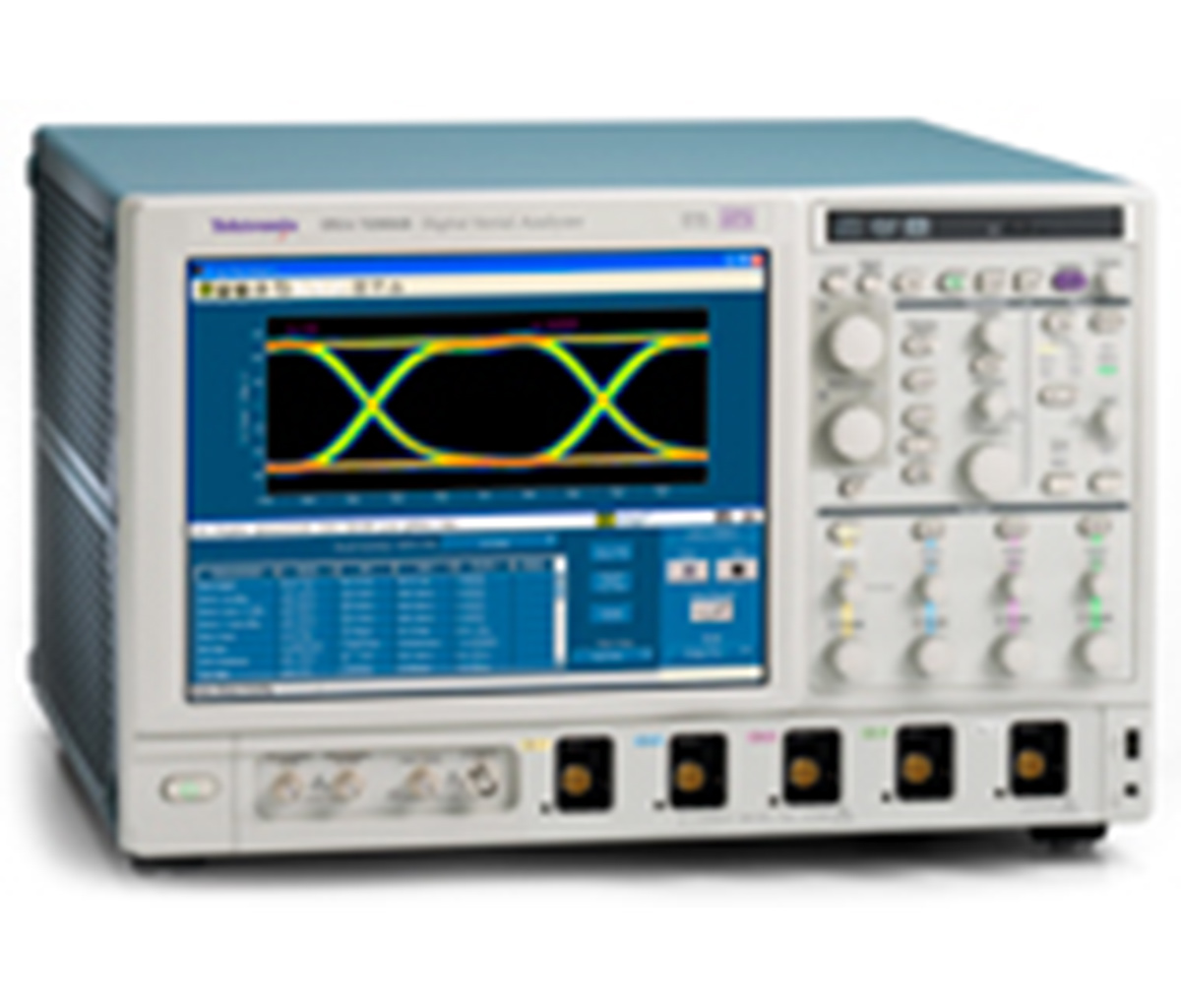

Tektronix DSA70604B

4 Ch 6 GHz Oscope

The Tektronix DSA70604B four-channel, 6 GHz digital signal analyzer/real-time digital phosphor oscilloscopes deliver a dedicated solution for the challenges posed by high-speed serial designs.

The large screen and the intuitive user interface on the Tektronix DSA70604B displays maximum amount of information. The DSA70604B delivers outstanding performance in signal acquisition and analysis, simple operation, and unrivaled debugging tools to speed up your day-to-day tasks.

Features like high signal-to-noise ratio and low internal noise floor enable you to perform precise characterization measurements with the Tektronix DSA70604B. For RF signal verification, a lower noise floor translates into a higher dynamic range, rendering the Tektronix DSA70604B suitable for a wider range of applications, making it the industry's best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs.

Tektronix DSA70604B - Features and Specifications:

  • Highest Bandwidth - Up to 20 GHz
  • 5 Gbps real-time serial trigger
  • Find intermittent events fast with DPX and fast acquisition features
  • Get the exact depiction of your waveform with superior signal integrity and excellent signal-to-noise ratio
  • Application support - Enables standard-specific certification, measurement automation, and ease of use
  • Reduce time spent trying to acquire problem signals with Pinpoint Triggering feature
  • Search & Mark feature delivers waveform pattern matching and software triggers for signals of interest

The Tektronix DSA70604B comes with 24/7 customer support and is available for rent or lease at TRS-RenTelco. Request a quote today.

Read More
  • Configurations
  • Resources
See Configuration Details
  • DSA

    Dpo Opts 2xl, Asm,Dja, Mth, Pth1,

  • SLA

    Serial Data Link Analysis - Advanced (Includes Equalization)

  • STU

    Serial Pattern Triggering Up To 6.25gb/S For Dsa70000b Models Only

  • USB2

    Usb 2.0 Automated Compliance Test Application

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Power Cord Notched

    Qty: 1
  • Adapter TCA-BNC

    Qty: 1
  • Keyboard MINI

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Cover Front

    Qty: 1
  • Adapter TCA-292MM

    Qty: 4
  • Case Pelican Transit

    Qty: 1
  • Mouse Optical

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.
