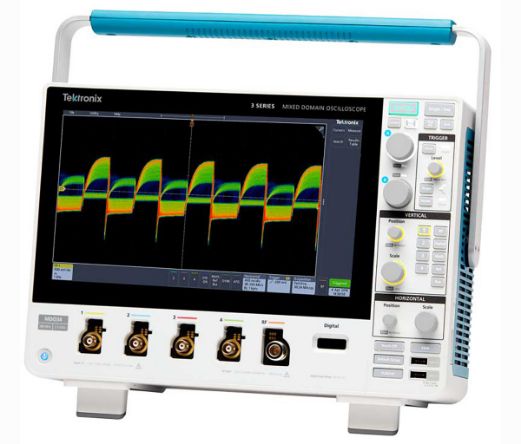

Tektronix MDO34 3-BW-1000
(4) Analog Channels 1 GHz Bandwidth for analog channels
Rent or Lease
Versatile, user-friendly, and powerful, the Tektronix MDO34 3-BW-1000 mixed domain oscilloscope is part of the new Tektronix MDO 3-Series. This series of scopes is equipped with a next-generation touch interface and several handy features that promise best-in-class performance.
Get your hands on a comprehensive set of tools for quick debugging at each stage. The MDO34 3-BW-1000 oscilloscope makes fast location and capture of anomalies, waveform record examination, and analysis of characteristics and device behavior possible with ease and allows for optional logic analyzer and spectrum analyzer capabilities.
With its large, high-definition display, this Tektronix MDO has a wide range of applications across industries such as manufacturing, education, power design, and IoT.
Tektronix MDO34 3-BW-1000 Features and Specifications:
- Bandwidth for analog channels: 1GHz
- Number of analog channels: Four
- Sampling rate: Up to 5 GS/s
- Record length: 10 MPTS
- Rise time: 400 ps
- Warranty: 3 years
The Tektronix MDO34 3-BW-1000 mixed domain oscilloscope is available for rent or lease at TRS-RenTelco. Talk to us at 800.874.7123 to learn more.
- Configurations
- Resources
- FAQsAI
--, AFG, BND, MSO, SA3
See Configuration Details
-
AFG
Arbitrary Function Genermain Itemr For 3 Series Oscilloscopes
-
BND
Application Bundle On 3 Series Oscilloscopes
-
MSO
16 Digital Channels For 3 Series Oscilloscopes With Digital Probe
-
SA3
Increase Spectrum Analyzer Input Frequency Range To 9 Khz To 3 Ghz And Capture Bandwidth To 3 Ghz For 3 Series Oscilloscopes
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power cord Right Angle
Qty: 1 -
Lead Set 8-Channel
Qty: 2 -
Probe MSO 16-Channel
Qty: 1 -
Probe
Qty: 4 -
Adapter N(m) - BNC(f)
Qty: 1 -
Probe Tip (Set Of 5)
Qty: 2 -
Probe Tip Set Of 10
Qty: 2 -
Marker Band Set Probe Identification 2 Each Of 5 Colors
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, SUP3-MSO
See Configuration Details
-
SUP3-MSO
LOGIC Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power cord Right Angle
Qty: 1 -
Lead Set 8-Channel
Qty: 2 -
Probe MSO 16-Channel
Qty: 1 -
Probe
Qty: 4 -
Adapter N(m) - BNC(f)
Qty: 1 -
Probe Tip (Set Of 5)
Qty: 2 -
Probe Tip Set Of 10
Qty: 2 -
Marker Band Set Probe Identification 2 Each Of 5 Colors
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Marker Band Set Probe Identification 2 Each Of 5 Colors
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Probe
Qty: 4
*This item has already been added to your cart. Check your cart for quantity and availability.
--, BND, MSO
See Configuration Details
-
BND
Application Bundle on 3 Series Oscilloscopes
-
MSO
16 Digital Channels for 3 Series Oscilloscopes with Digital Probe
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Band Set Probe Identification 2 Each Of 5 Colors
Qty: 1 -
Probe Tip Set Of 10
Qty: 2 -
Probe Tip (Set Of 5)
Qty: 2 -
Adapter N(m) - BNC(f)
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Lead Set 8-Channel
Qty: 2 -
Probe MSO 16-Channel
Qty: 1 -
Probe
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, SUP3 BND
See Configuration Details
-
SUP3 BND
Application Bundle on 3 Series oscilloscopes
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Band Set Probe Identification 2 Each Of 5 Colors
Qty: 1 -
Adapter
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Probe
Qty: 4 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix MDO34 series Datasheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What bandwidth does the Tektronix MDO34-3-BW-1000 offer?
The MDO34-3-BW-1000 provides 1 GHz analog bandwidth on all analog channels. This bandwidth is upgradable, allowing you to start with lower bandwidth models and upgrade to 1 GHz as your needs evolve, making it a flexible investment for growing test requirements.
How many channels are available on the MDO34-3-BW-1000?
The MDO34-3-BW-1000 includes 4 analog channels with optional 16 digital channels when equipped with the 3-MSO option. Additionally, it features an integrated spectrum analyzer input with frequency range from 9 kHz to 1 GHz (standard) or 9 kHz to 3 GHz (optional), combining multiple instrument types in one compact unit.
What is the maximum sample rate of the MDO34-3-BW-1000?
The MDO34-3-BW-1000 delivers up to 5 GS/s sample rate with 10 M record length on all analog channels. This combination of high sample rate and deep memory enables capture of long signal durations while maintaining fine timing resolution for detailed analysis.
What spectrum analyzer capabilities are built into the MDO34-3-BW-1000?
The MDO34-3-BW-1000 includes an integrated spectrum analyzer covering 9 kHz to 1 GHz as standard, with an optional upgrade extending coverage to 3 GHz. When equipped with the 3 GHz option, ultra-wide capture bandwidth up to 3 GHz enables single-acquisition capture of wideband signals and frequency-hopping communications.
What waveform capture rate does the MDO34-3-BW-1000 achieve?
The MDO34-3-BW-1000 delivers greater than 280,000 waveforms per second maximum capture rate with FastAcq technology and digital phosphor display. This high capture rate with intensity grading quickly reveals infrequent glitches and anomalies that slower acquisition systems would miss.
Does the MDO34-3-BW-1000 include an arbitrary function generator?
Yes, with the optional 3-AFG, the MDO34-3-BW-1000 includes an integrated arbitrary function generator providing 50 MHz waveform generation with 13 predefined waveform types, 128 k arbitrary generator record length, and 250 MS/s arbitrary sample rate for simulating sensor signals or performing margin testing.
What serial bus protocols can the MDO34-3-BW-1000 decode?
With optional serial decode packages, the MDO34-3-BW-1000 supports triggering, decoding, and search for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and audio standards including I2S, LJ, RJ, and TDM, enabling comprehensive mixed-signal system debug.
What display and user interface features does the MDO34-3-BW-1000 provide?
The MDO34-3-BW-1000 features an 11.6 inch HD (1920 x 1080) capacitive touchscreen with intuitive touch interactions including pinch, expand, drag, and swipe gestures. The Settings Bar provides one-tap access to channels and analysis tools, while the Results Bar displays measurements and cursors without sacrificing waveform viewing area.
