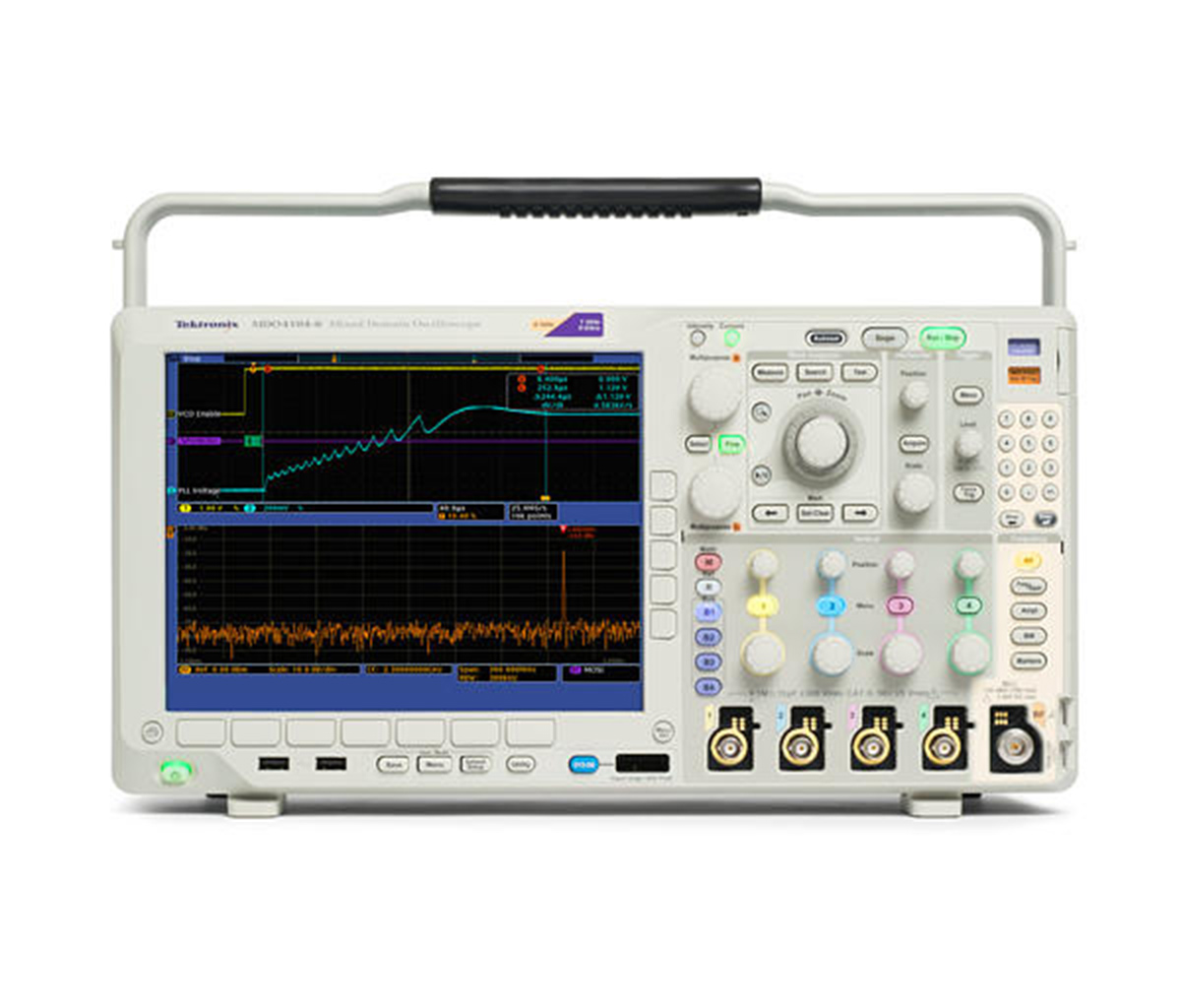

Tektronix MDO4054-6
(4) 500MHz ch., (16) digital ch., (1) 6 GHz RF ch. MDO
Make measurements on digital, analog and RF signals with the Tektronix MDO4054-6. This mixed domain oscilloscope combines a mixed signal oscilloscope and a spectrum analyzer, and is a highly integrated model with many advantages over standard spectrum analyzers and oscilloscopes with FFT capabilities.
Weighing approximately 5 kg (11 lb), the Tektronix MDO4054-6 includes a logic analyzer, protocol analyzer, frequency counter and function generator. Use the Tektronix MDO4054-6 for embedded design, EMI troubleshooting, manufacturing test and wireless troubleshooting with the help of the MagniV(TM) high-speed acquisition on channels.
Tektronix MDO4054-6 - Features and Specifications:
- Four 500 MHz analog channels, 16 digital channels with 60.6 ps time resolution, and one 6 GHz RF channel
- 20 Mpts memory, 2.5 GS/s sample rate
- Provides mixed domain analysis with views in both time and frequency frames
- 10.4 inches bright XGA color display
- Two USB ports on the front panel and two on the rear panel
- 3.9 pF standard passive voltage probes of capacitive loading
Get the Tektronix MDO4054-6 for rent or lease at TRS-RenTelco with 24/7 expert support for all your needs. Request a quote for pricing and other details.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Marker Set
Qty: 1 -
Adapter
Qty: 1 -
Probe Tip (Set Of 10)
Qty: 1 -
Cord Power
Qty: 1 -
Tips Extension Ground (kit of 20)
Qty: 1 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Hook Tip
Qty: 4 -
Ground Lead
Qty: 4 -
Cover Front
Qty: 1 -
Probe MSO 16-Channel
Qty: 1 -
Probe TPP0500 Or TPP0500B
Qty: 4 -
Case Accessory Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
