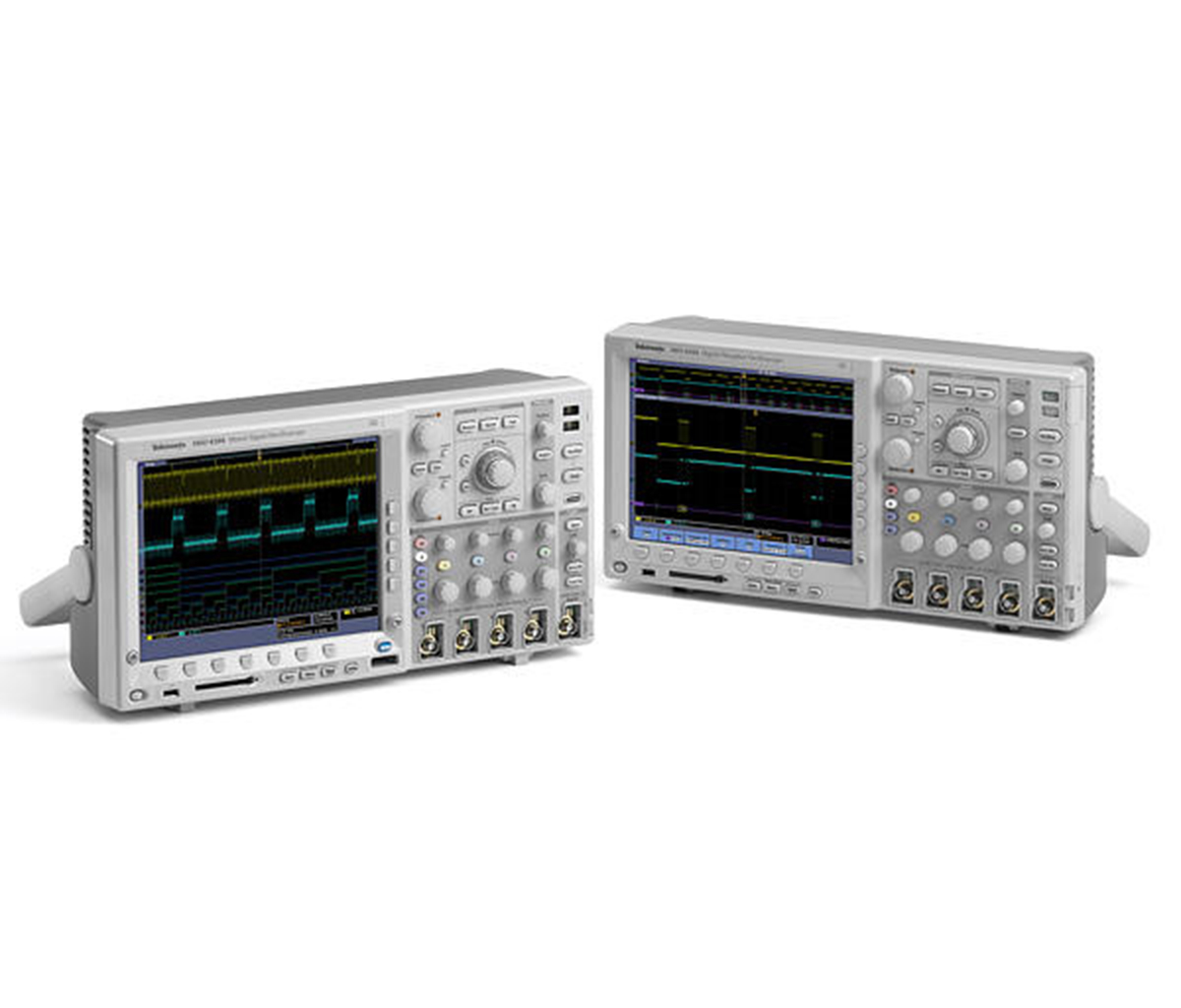

Tektronix MSO4034
4+16-CH, DIGITAL, 350 MHz Mixed Signal Oscilloscope
Rent or Lease
Visualize and correlate analog and digital signals easily and debug mixed signal designs effectively with the Tektronix MSO4034 Mixed Signal Oscilloscope. The MSO4034 is best suited for applications involving design and debugging of embedded, mixed signals, videos, automotive electronics, and investigation of transient phenomena and power measurements.
Tektronix MSO4034 Features and Specifications:
- Number of input channels: 4 16
- Maximum sample rate (all horizontal system analog channels): 2.5 GS/s
- Maximum sample rate (main horizontal system digital channels): 500 MS/s (2 ns resolution)
- Record length: 10 MPts
- 50,000 wfm/s maximum waveform capture rate
- Analog bandwidth (-3 dB) 5 mV/div - 1 V/div: 350MHz
- Calculated rise time 5 mV/div (typical): 1 ns
- Input impedance: 1 Mohmes plus/minus1%, 50 ohmes plus/minus 1%
- Vertical resolution: 8 bits (11 bits with Hi Res)
- DC gain accuracy: plus/minus 1.5% with offset set to 0 V
The Tektronix MSO4034 Mixed Signal Oscilloscope is available for rent or lease at TRS-RenTelco with technical support. Contact us at 800-874-7123 or request a quote today for calibrated test equipment.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Probe Passive x10
Qty: 4 -
Marker Set
Qty: 2 -
Probe Tip (Set Of 10)
Qty: 1 -
Cord Power
Qty: 1 -
Ground Lead
Qty: 4 -
Hook Tip Retractable
Qty: 4 -
Adjustment Tool
Qty: 2 -
Accessory Pouch
Qty: 1 -
Probe Digital Logic 16-Channel
Qty: 1 -
Tips Extension Ground (kit of 20)
Qty: 1 -
Ground Lead 3 in
Qty: 8 -
Ground Lead 8 in
Qty: 2 -
IC Grabber
Qty: 20 -
Holder Probe Tip
Qty: 2 -
Compact Flash Card 32 MB
Qty: 1 -
Case Accessory Plastic
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
