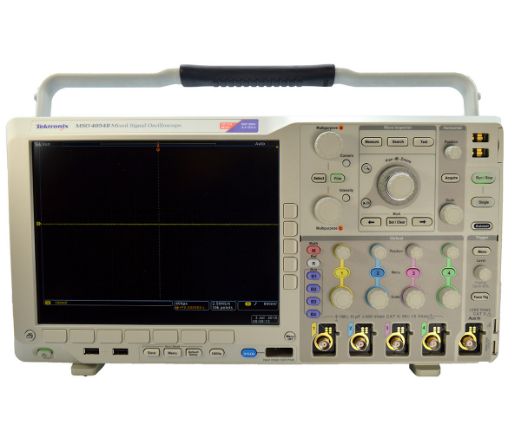

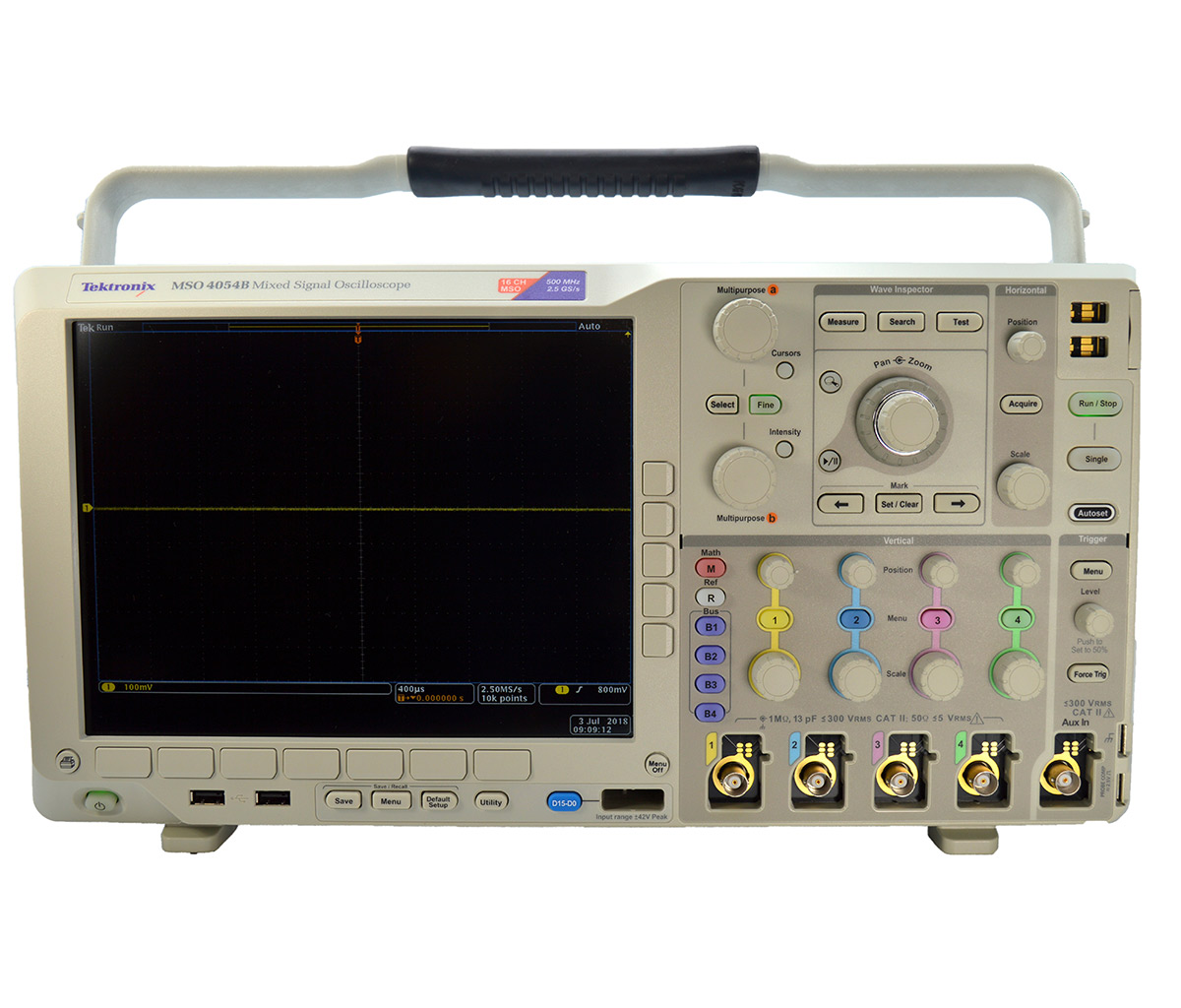

Tektronix MSO4054B

4+16-CH, DIGITAL, 500 MHz Mixed Signal Oscilloscope

Analyze up to 20 analog and digital signals to quickly find and diagnose problems in complex designs with the Tektronix MSO4054B Mixed Signal Oscilloscope.

Get high performance to see the fast-changing signal details with bandwidths up to 1GHz and at least 5X oversampling on all channels. Effectively identify anomalies, such as runt pulses, glitches, and timing issues. The MSO4054B captures long windows of signal activity while also maintaining fine timing resolution.

The 16 digital channels integrated into the oscilloscope's user interface can efficiently simplify complex operations and solve mixed-signal problems easily.

Tektronix MSO4054B Features and Specifications:

  • 500MHz bandwidth
  • Number of analog channels: 4
  • Number of digital channels: 16
  • 2.5 GS/s sample rate on all channels
  • 20 megapoint record length on all channels
  • >50,000 wfm/s maximum waveform capture rate
  • Vertical resolution: 8 bits (11 bits with Hi Res)
  • Maximum input voltage: 42 Vpeak

If you are looking for a new or well-maintained used Tektronix MSO4054B Mixed Signal Oscilloscope for rent or lease, contact us at 800-874-7123.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Marker Set

    Qty: 1
  • Probe Tip (Set Of 10)

    Qty: 1
  • Cord Power

    Qty: 1
  • Tips Extension Ground (kit of 20)

    Qty: 1
  • Ground Lead 3 in

    Qty: 8
  • Ground Lead 8 in

    Qty: 2
  • IC Grabber

    Qty: 20
  • Holder Probe Tip

    Qty: 2
  • Hook Tip

    Qty: 4
  • Ground Lead

    Qty: 4
  • Accessory Pouch

    Qty: 1
  • Cover Front

    Qty: 1
  • Probe MSO 16-Channel

    Qty: 1
  • Probe TPP0500 Or TPP0500B

    Qty: 4
  • Case Accessory Plastic

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.
